1214A

4 Hole Rotating Base, AL

Name: 4 Hole Rotating Base, AL
SKU: 1214A
Price: 28.23 USD
Availability: InStock

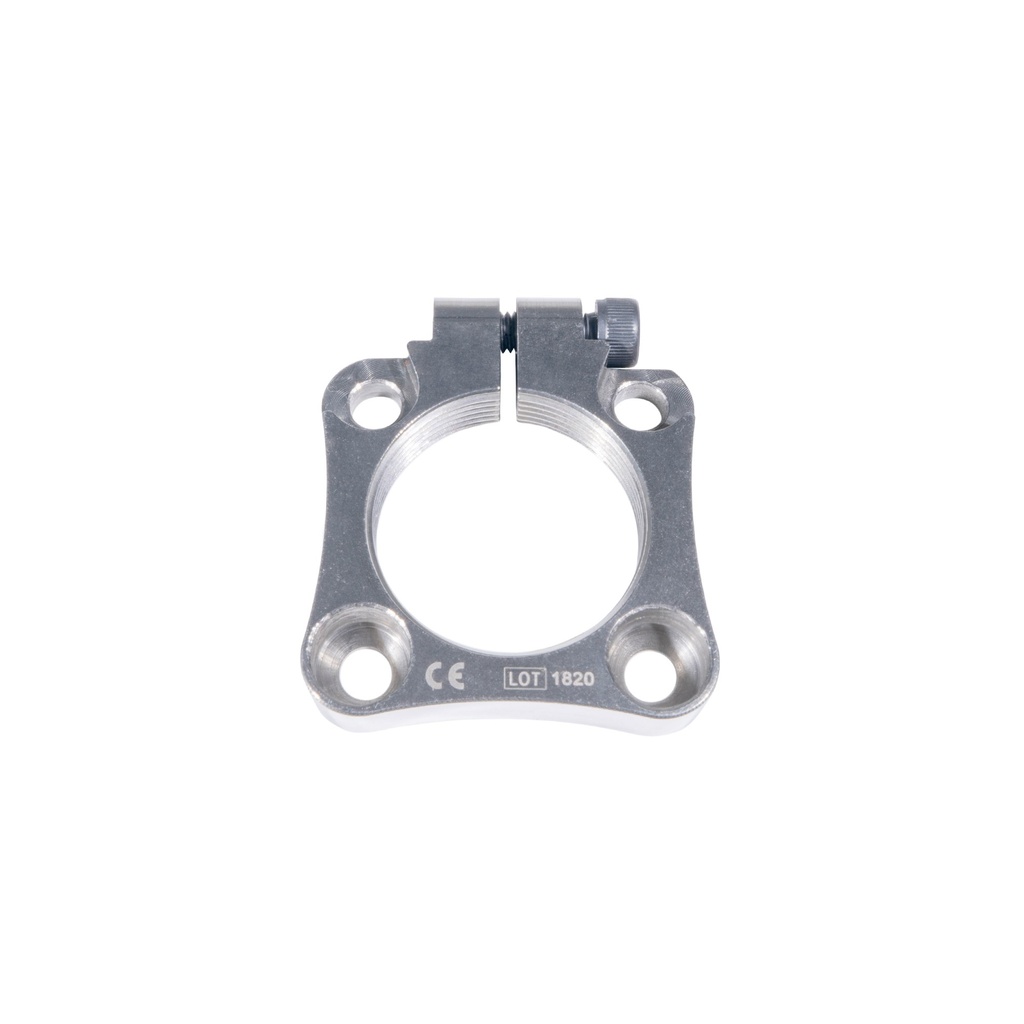

The 4-Hole Rotating Base provides 360º of rotation for

pyramid adapter or pyramid receiver. Used with the

1215T, 1225T/S or 1216T/S. All attachment screws are

provided with 4-hole base. The 1214T, 1214S, and 1214A

are manufactured by a forged and machined combination

resulting in a strong and light weight product.

Warranty: 2 years

International clients will receive silver metallic aluminum - 250 lb weight limit

USA clients will receive black aluminum - see specs for weight limit

Material: Aluminum

Activity Level: Moderate

K-Level: K2

P/N	Material	Build Height	Product Weight	Weight Limit
1214A (Black)	Aluminum	10 mm	62g	158kg / 350lb
1214A (Silver)	Aluminum	10 mm	62g	114kg / 250lb

P/N	Description
1225S/T	Rotating Pyramid, with hole, SS/Ti
1215T	Rotating Pyramid, without hole, SS
1216S/T	Rotating Receiver, SS/Ti
1702T	Rotating Receiver, 45 mm, Ti
1703T	Rotating Receiver, 60 mm, Ti
1704T	Offset Rotating Receiver, Ti
1723T	7.5 Degree Angled Offset Rotating Receiver, Ti
1713T	15 Degree Angled Offset Rotating Receiver, Ti
1725T	Offset Rotating Pyramid, Ti

Fastener	Torque	Wrench
M6 Flat Head	10 Nm	4 mm wrench
M6 Cap Screw	10 Nm	5 mm wrench
