1335

Pneumatic 4 Bar Knee

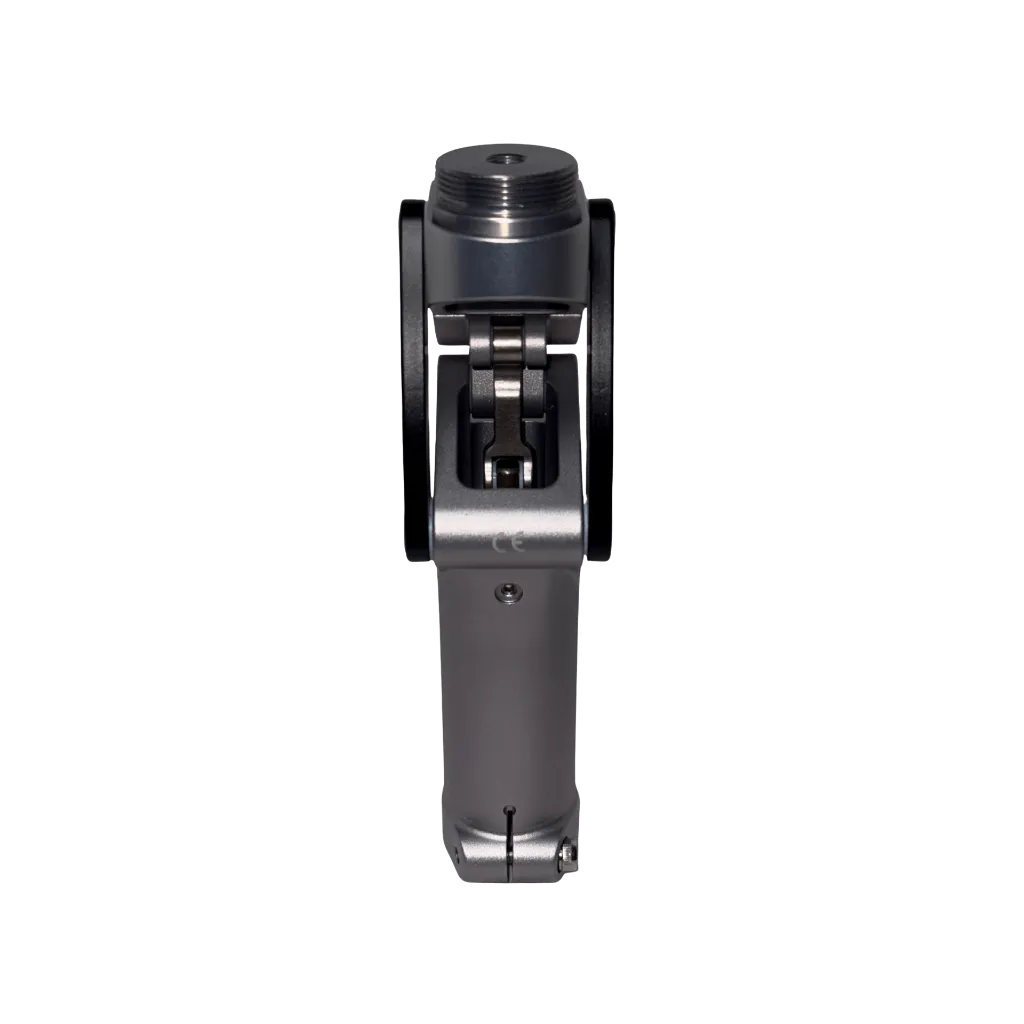

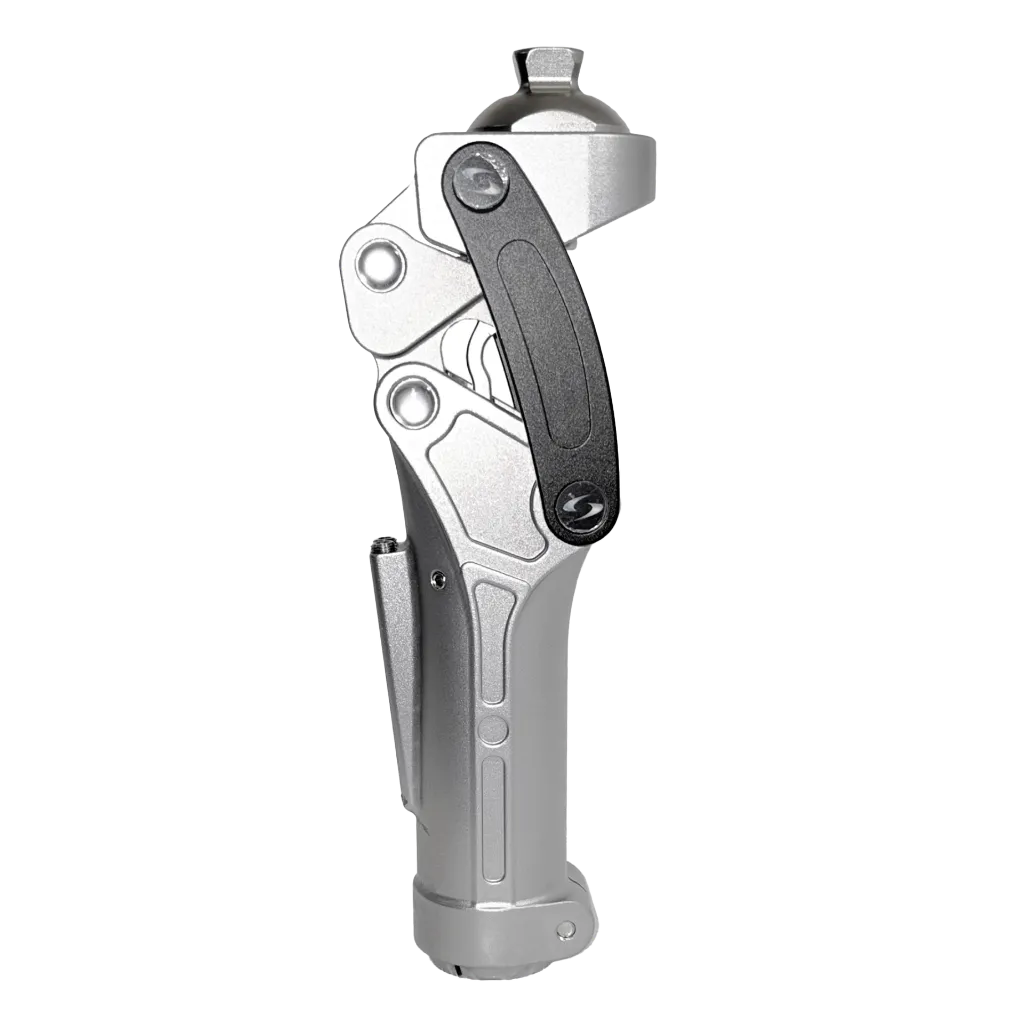

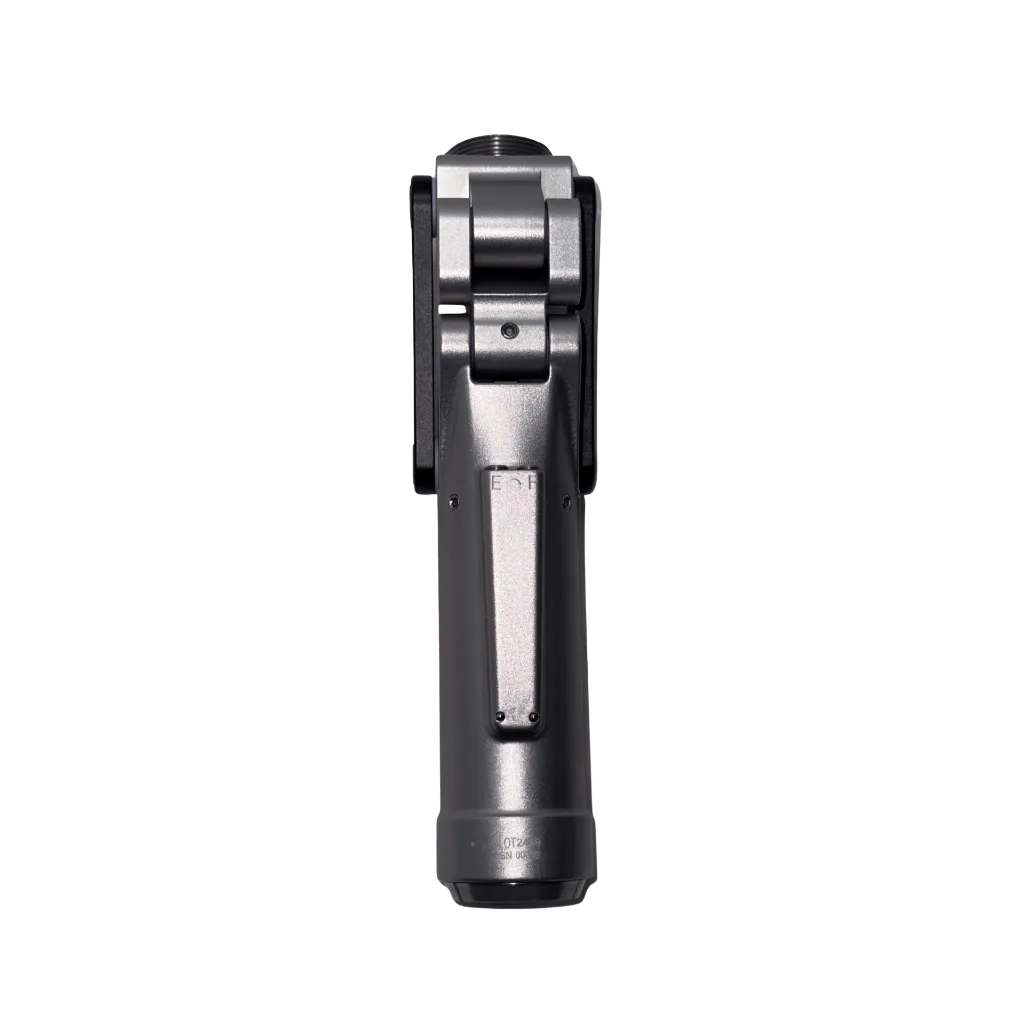

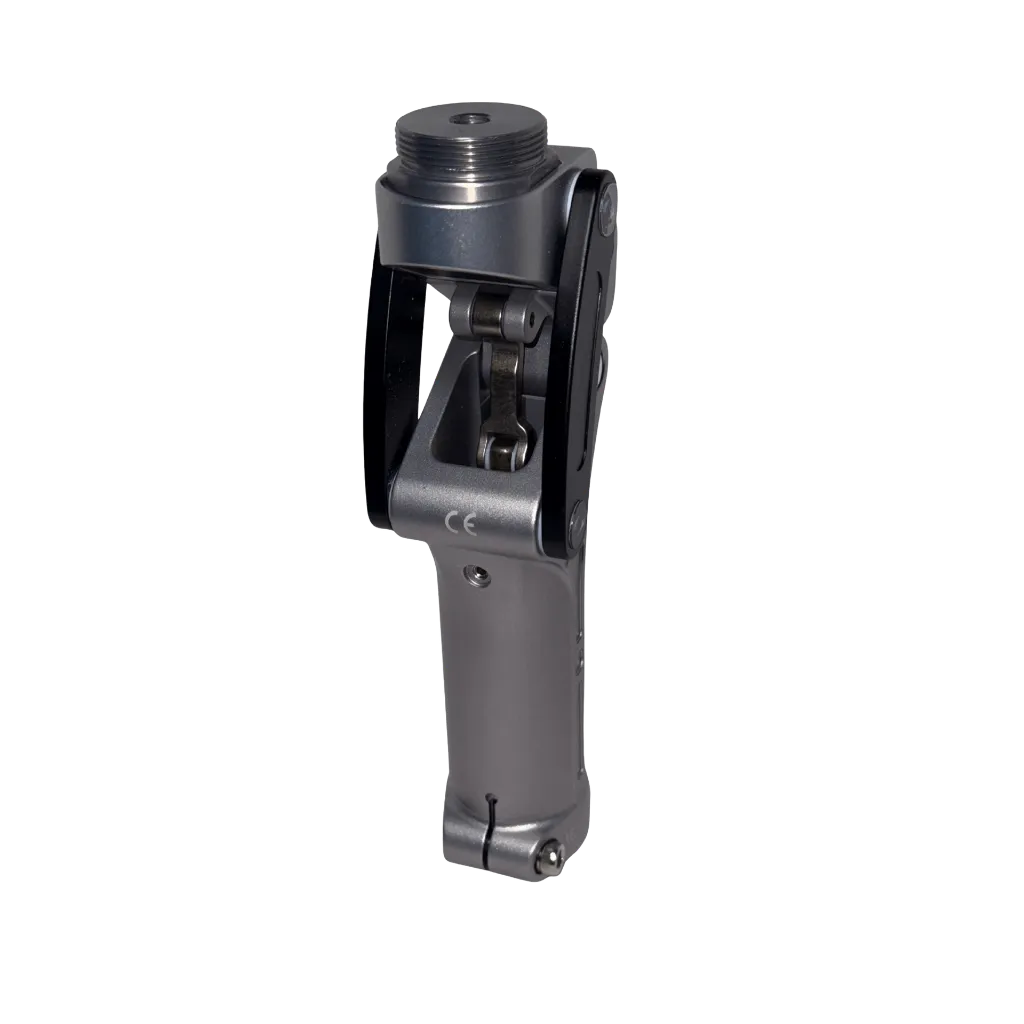

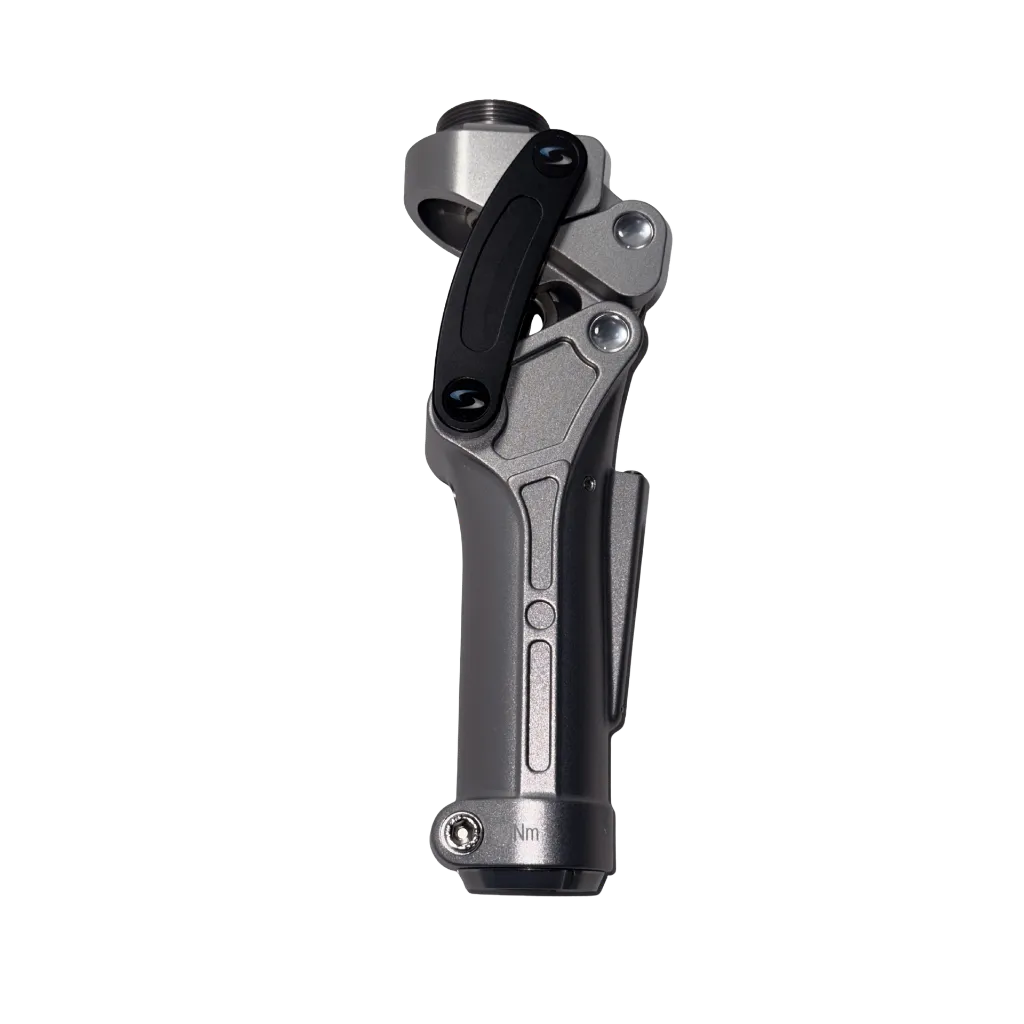

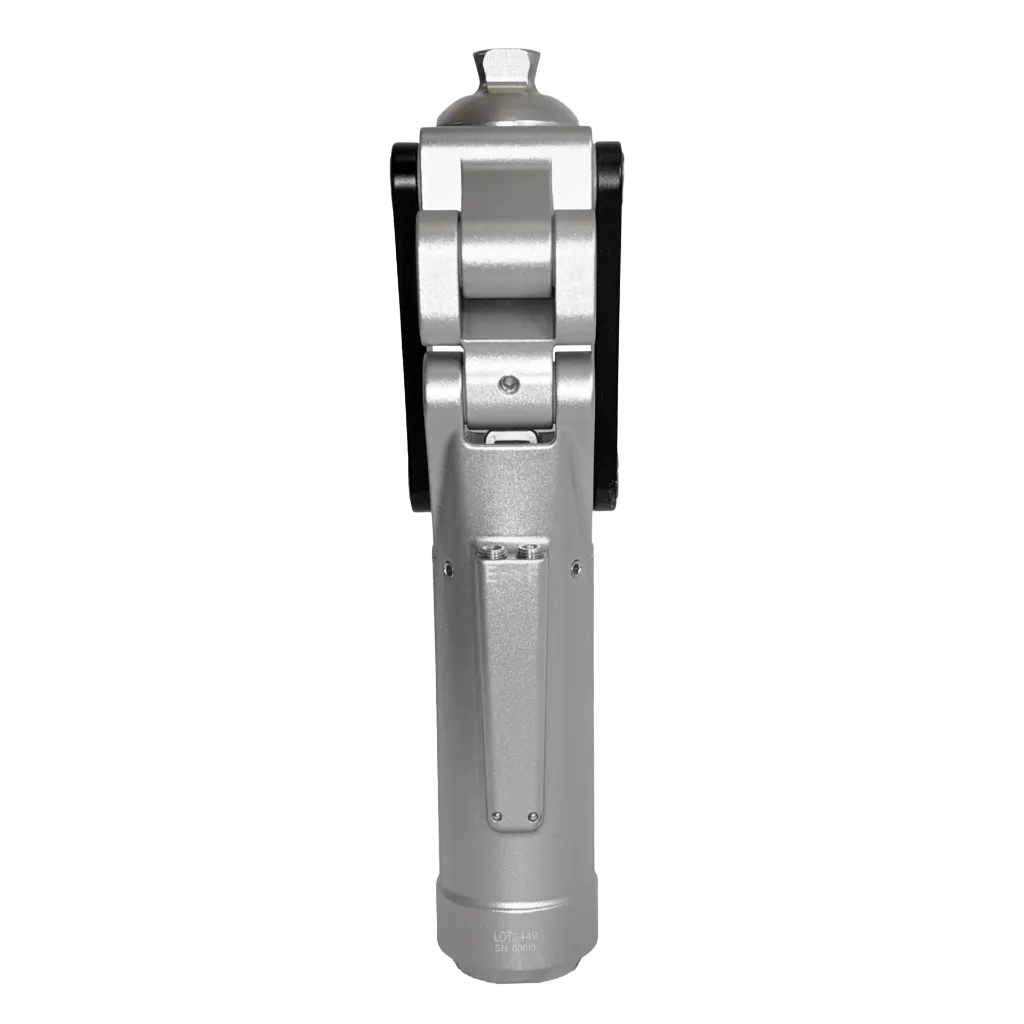

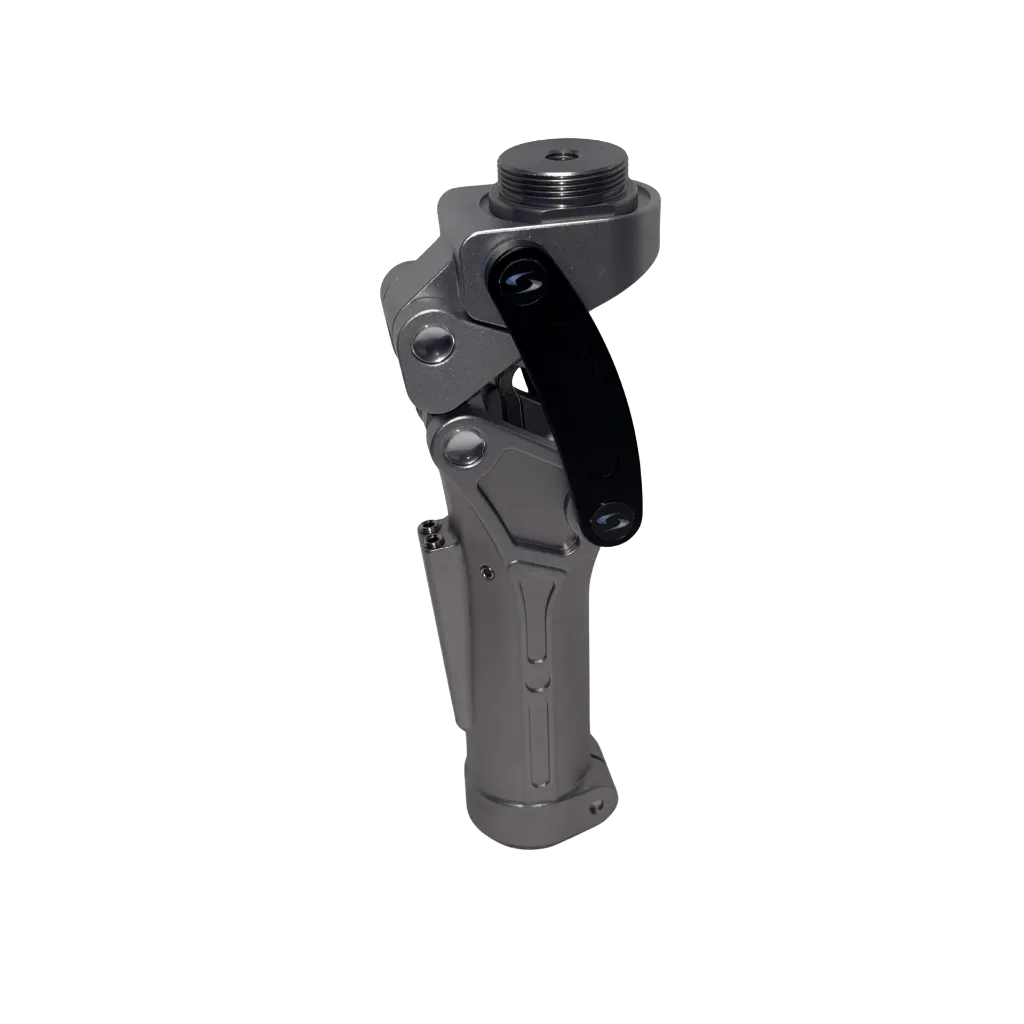

The 1335AP/1335KD Pneumatic 4 Bar Knee promotes stable stance control and has smooth swing phase transitioning.

Benefits

Treatment of all amputation levels
Flexion and extension damping can be easily adjusted independently of each other
High stance phase polycentric four-axis joint stability
Lightweight aluminum design The 1335 is a polycentric prosthetic knee joint with pneumatic swing phase control that offers reliable stance phase security for users with moderate activity levels. In the swing phase, it supports a moderate range of walking speeds.

Warranty: 2 years

Specifications subject to change

PDAC Approved LCodes: L5840 + L5850

Material: Aluminum

Activity Level: Moderate

K-Level: K2, K3

L-Codes: L5850, L5840

P/N	Description
1211T-B	30mm Pylon Titanium Receiver, Black
1211T	30mm Pylon Titanium Receiver
1211S	30mm Pylon Stainless Steel Receiver
1211A	30mm Pylon Aluminum Receiver, Black
1211A-OP	30mm Pylon Aluminum Assembly One Piece

Fastener	Torque	Wrench
M6 Cap Screw (Tube Clamp)	12 Nm	5 mm Wrench
M10 Bolt (Pyramid Center)	30 Nm	8 mm Wrench

Instructions for Use (IFU)

PDAC Letter

Product Information

Specifications
