L1321

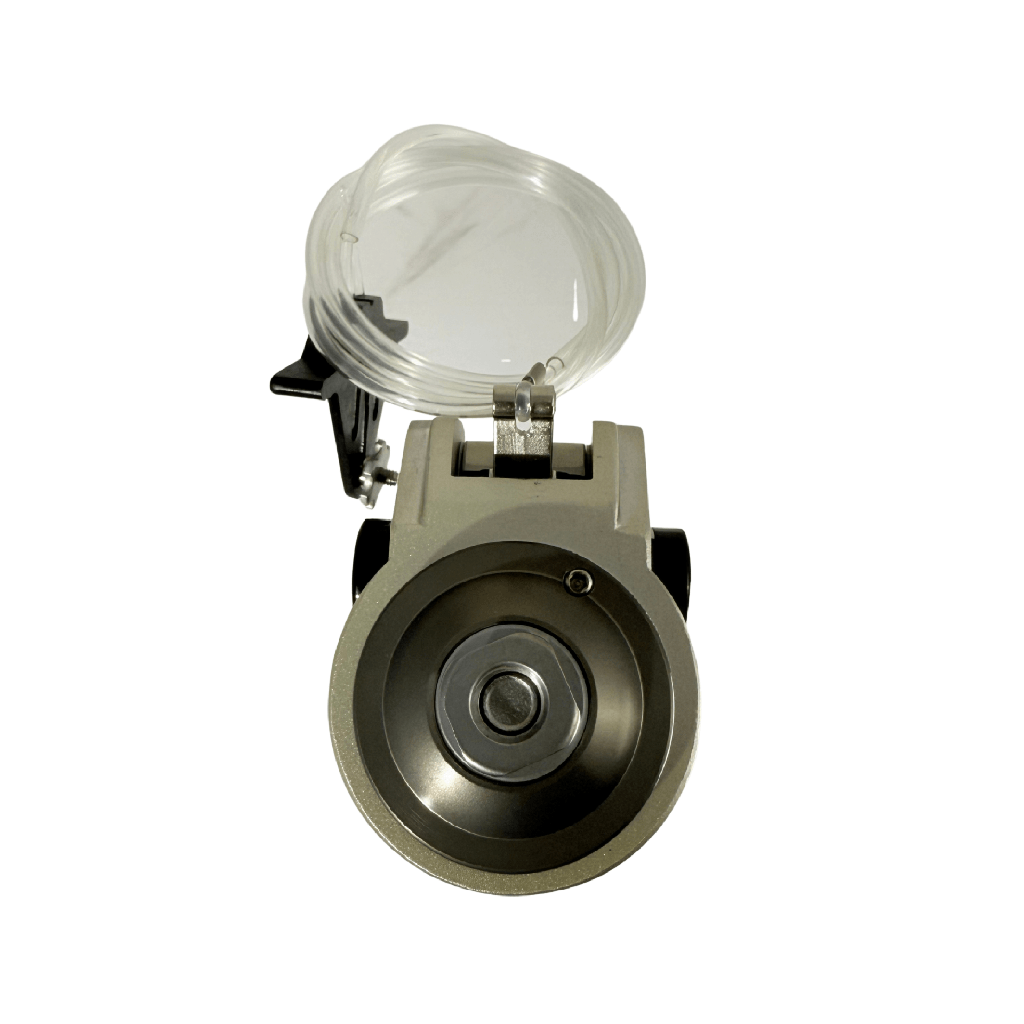

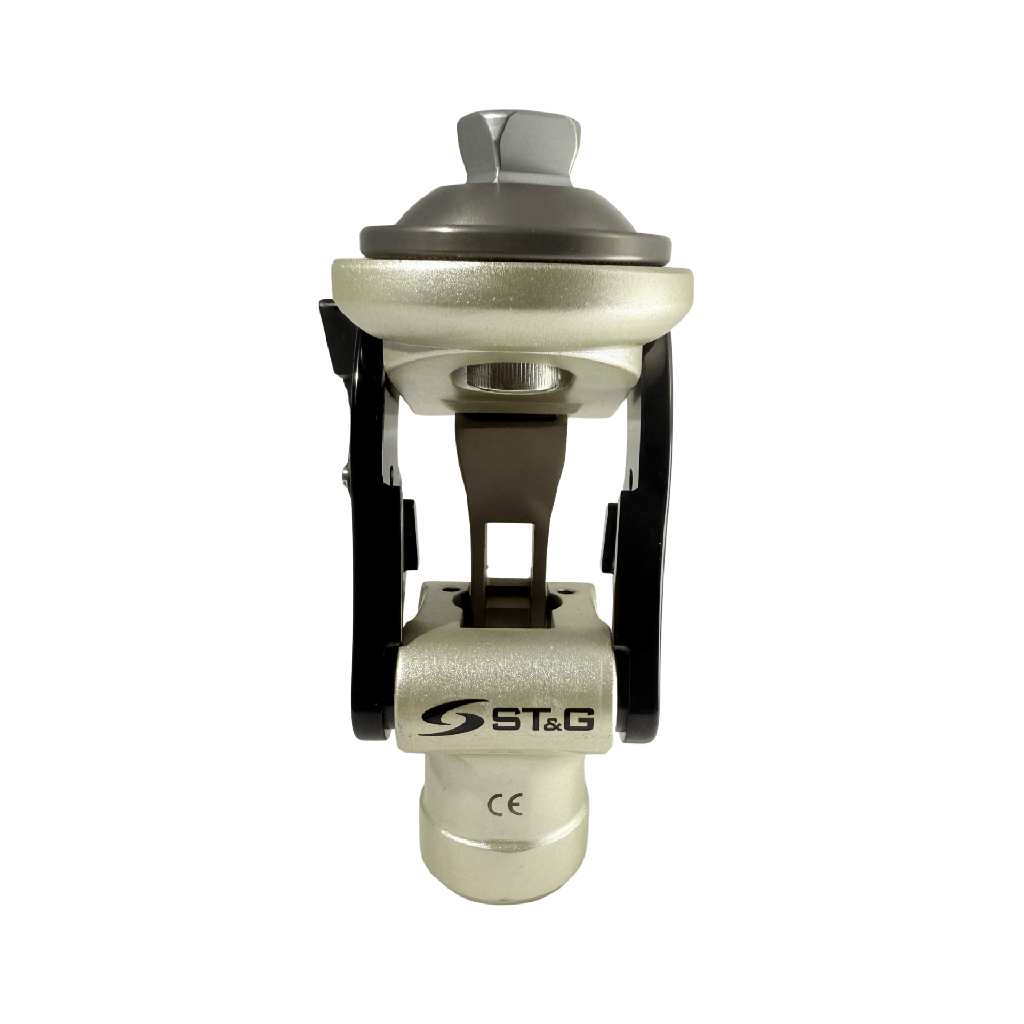

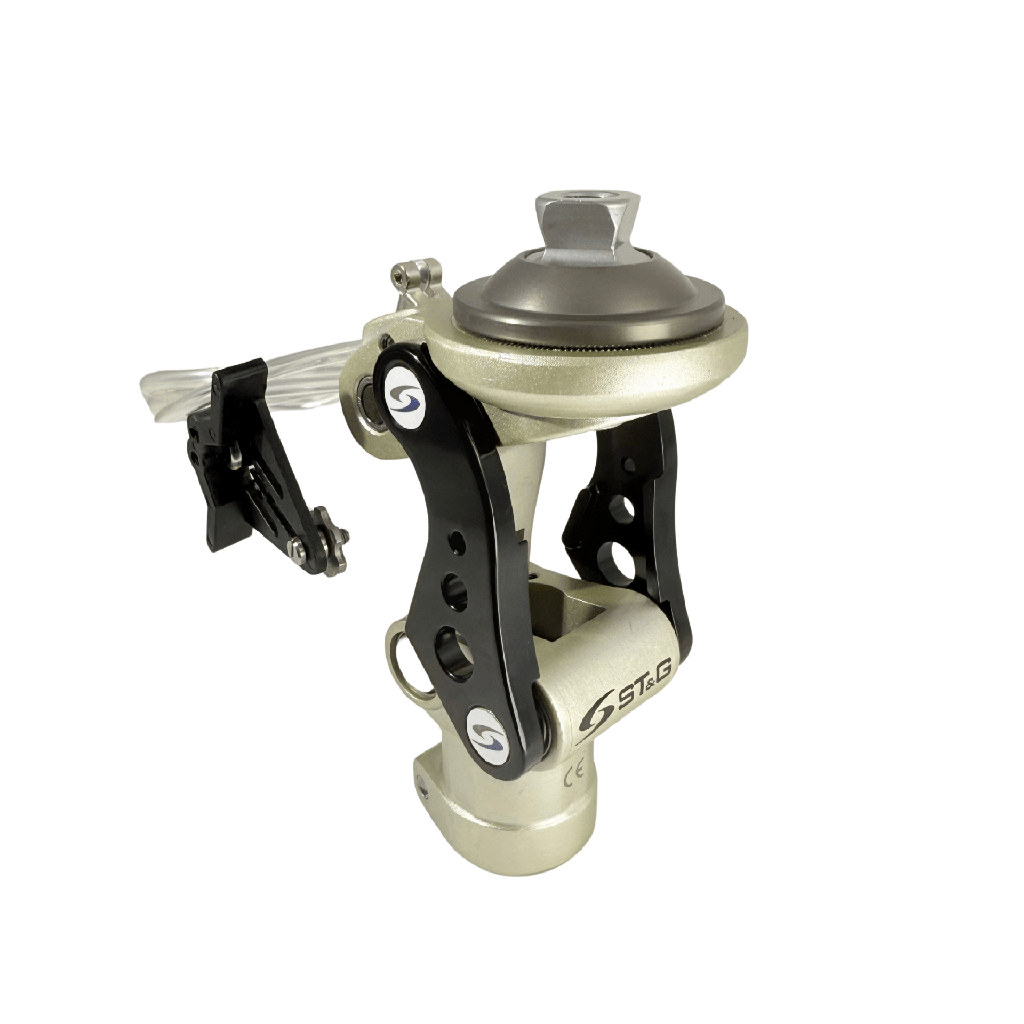

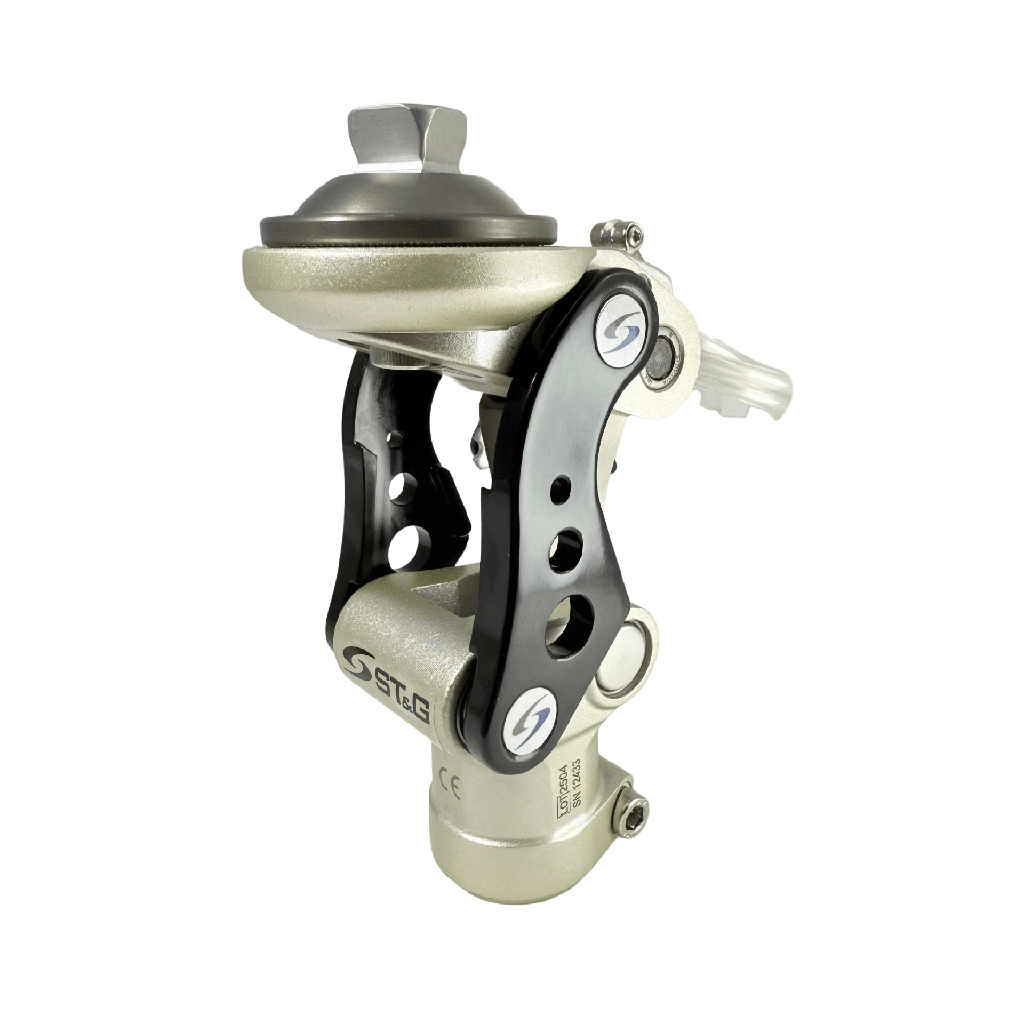

Polycentric 4 Bar Manual Locking Knee

$ 545.92 $ 545.92
  • Manual locking polycentric knee
  • Lanyard lock mechanism can be disabled at a later time to convert to a non-locking free swing knee
  • Provides a high degree of safety
  • Frame construction is made of superlight aluminum alloy
  • 4-bar linkage is made of aircraft alloy (AA7075)
  • Proximal attachment has 2 mm of A/P, M/L slide and rotation adjustment
  • Optional Adapters: Pyramid (AK) and Lotus (KD)

PDAC approved HCPCS code(s): L5611, L5850, L5925

Warranty: 2 year

  • Adapter
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Aluminum
Activity Level: Moderate
K-Level: K1, K2
L-Codes: L5850, L5925, L5611

P/NL1321AP Pyramid AdapterL1321AL Lotus Adapter
Weight Limit125 kg / 275 lb125 kg / 275 lb
Build Height108 mm114.3 mm
Knee Center to Mid Dome23 mm29.3 mm
Product Weight651 g672 g
MaterialAluminumAluminum
Warranty2 years2 years

P/NDescription
1211T-B
30 mm Pylon Titanium Receiver, Black
1211T
30 mm Pylon Titanium Receiver
1211S
30 mm Pylon Stainless Steel Receiver
1211A
30 mm Pylon Aluminum Receiver, Black
1211A-OP
30 mm Pylon Aluminum Assembly One Piece
PA13Pyramid Adapter
LA13Lotus Adapter
LY13Lanyard for Manual Locking Knee

FastenerTorqueWrench
M6 Cap Screw12 Nm5 mm wrench
M10 Center Bolt30 Nm8 mm wrench
