Offset Tube Clamp, 30mm, Ti
1222T

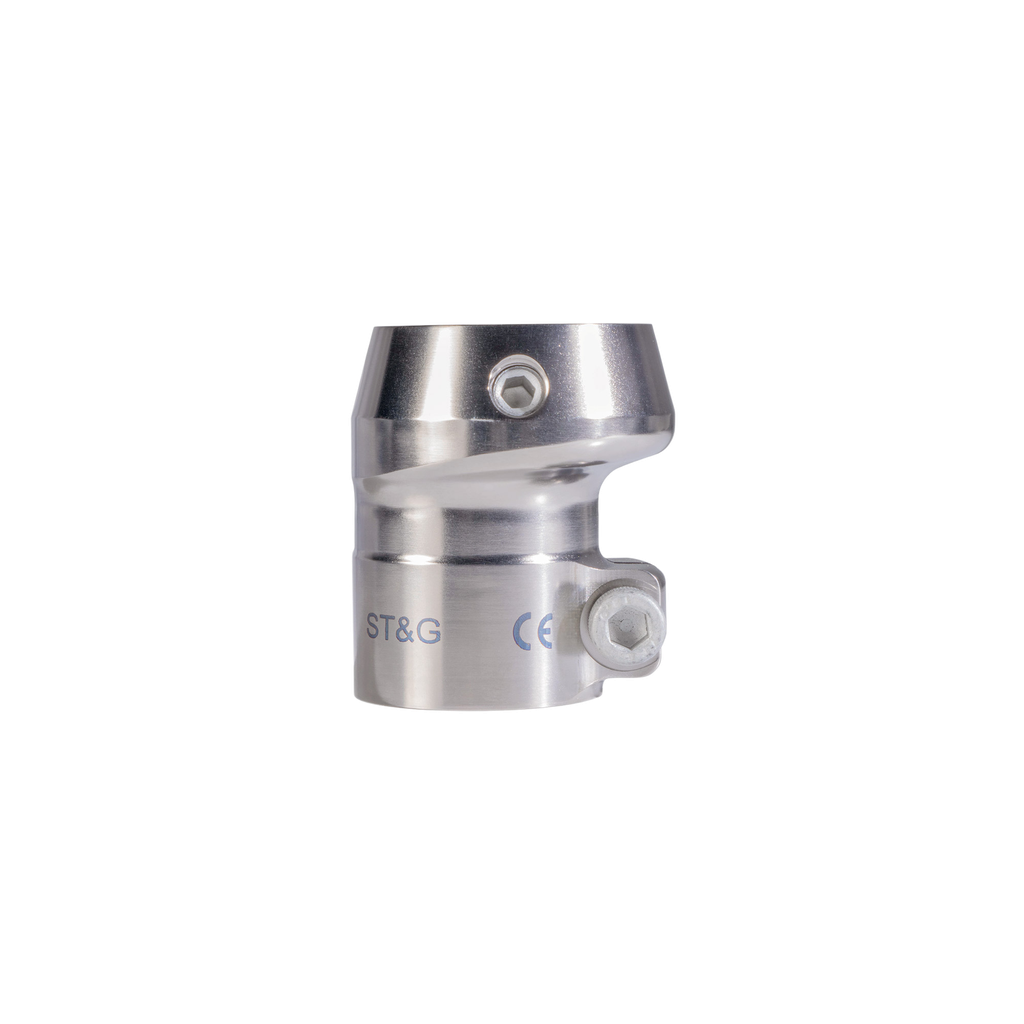

Offset Tube Clamp, 30mm, Ti

$ 85.50 $ 85.50
The 30mm 1222 tube clamp offers 5mm of offset when
extra alignment is needed. It is also ideal when using a
pin suspension lock, where prosthetic and pin alignment
can be easily adjusted using the offset clamp. This versatile
clamp design also provides an offset position that can be
rotated 360 degrees.

Warranty: 2 years


All ST&G Titanium components are waterproof. (If exposed to salt water, exercise proper care post exposure by thoroughly washing and drying the titanium product)


Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Titanium
Activity Level: Moderate
K-Level: K3

P/NMaterialProduct Weight
Build Height
Weight Limit
1222TTitanium98 g
19 mm
170 kg / 375 lb

P/NDescription
1211T-B
30 mm Pylon Titanium Receiver, Black
1211T
30 mm Pylon Titanium Receiver
1211S
30 mm Pylon Stainless Steel Receiver
1211A
30 mm Pylon Aluminum Receiver, Black
1211A-OP
30 mm Pylon Aluminum Assembly One Piece

FastenerTorqueWrench
M6 Cap Screw7 Nm5 mm wrench
M8 Set Screw (Alignment Screw)15 Nm4 mm wrench

Instructions for Use (IFU)

1222_1242 IFU REV. B (7-21-2026).pdf
