OTNI 17 FEM

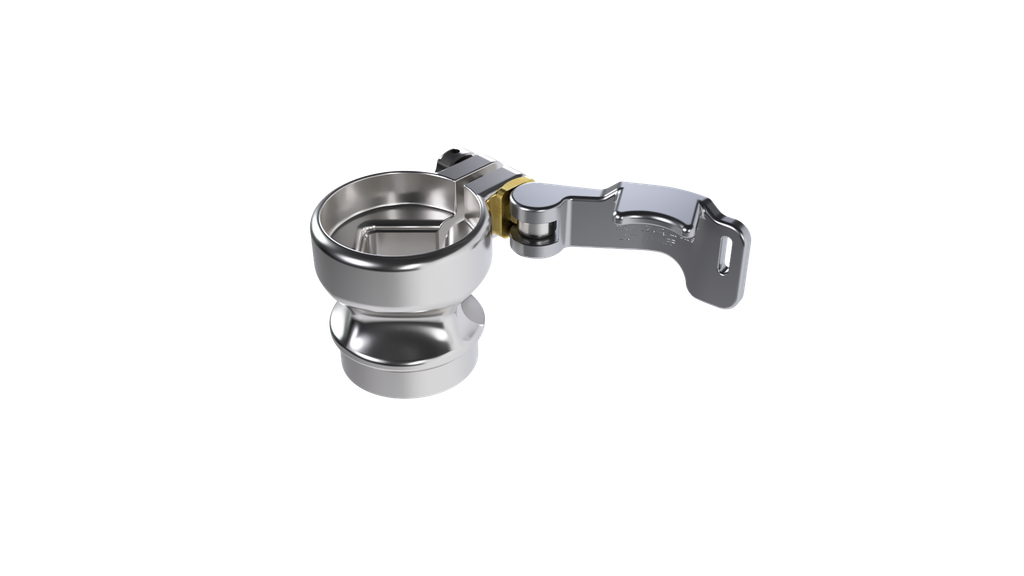

Luci Female Set (Excludes Offset Plate)

Description: OTNI17=FEM is the Luci Connector only, without the offset plate, or the OTNI1709 Luci Male Part (Taper Sleeve).

Product description

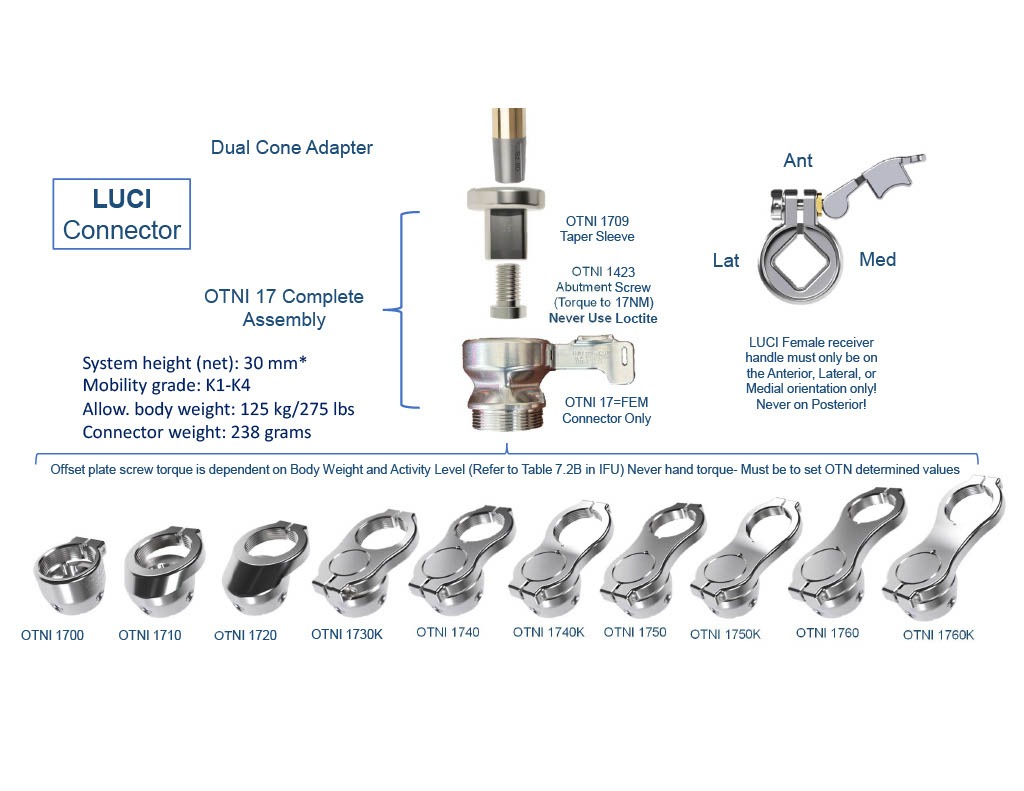

The Luci Connector System is a product to quickly attach-and-release bone anchored prosthetics.

Warranty Period
The warranty on the OTNI 17 Luci Connector as part of the BADAL X system is 24 months (Excludes Consumables).
This warranty covers failures of the product's function that result from errors in material, production, and construction, provided the OTNI 17 Luci Connector is used as intended and under regular conditions.
To maintain the warranty, all check-ups must be performed, and the OTNI 1707 Grit Plate must be replaced annually.

Normal wear, tear, and play are excluded from the warranty.

OTN recommends replacement of the whole Luci connector, as just replacing a OTNI17=FEM with an existing OTNI1709 will lead to accelerated wear and tear of the Connector, and as such does not provide a warranty for singular componentry replacements.

LCode L5991 for “Complete Connector System Only, not for partial replacement”

NOTE: ABC Scope of Practice requires training from factory representative in order to provide any Osseointegration components, and is restricted to the corresponding non-invasive componentry. ST&G requires any Certified Prosthetist be trained and on our "Osseointegration Certified" list to process an order. Instruction can be offered prior to processing an order so the order can be completed and shipped.

Material: Titanium grd. 5, Stainless steel, Bronze

Engraving: OTNI 1701 CE YYYYYY

Maximum Weight Limit: 275 pounds (Account for a buffer for load spiking and activity level, as K4 activities will drop maximum weight limit)

Open OTN box returns with a broken seal will incur a $45 restocking fee because the manufacturer must evaluate and recertify the item.
This fee does not apply to items eligible for warranty coverage.



These products are only available for purchase within the United States. For more information or to place an order, please call our office. Our team will be happy to assist you!

Add to cart
Contact Us: 714-524-0663 Distributor Contacts
This product is not available for delivery to your region. Please contact us if you believe this is in error.
Contact Us
Material: Bronze, Stainless Steel, Titanium

P/NProduct DescriptionExtra Information
OTNI 17=FEMLuci Female Set(Excludes OTNI 1709 Male Part (Taper Sleeve), Abutment Screw, and Offset Plate)

OTNI 1709
OTNI 1423
OTNI 1422
Luci Male Part (Taper Sleeve)
M14 Abutment Screw
M12 Abutment Scre
Available OTNI Offset plate (OTNI 1700 - OTNI 1760K) (not included).

OTNI 1700 0 mm
OTNI 1710 10 mm
OTNI 1720 20 mm
OTNI 1730K 30 mm kink 5°
OTNI 1740 40 mm
OTNI 1740K 40 mm kink 12°
OTNI 1750 50 mm
OTNI 1750K 50 mm kink 15°
OTNI 1760 60 mm
OTNI 1760K 60 mm kink 15°

Table 7.3A: screw connection specifications



Torque Thread lock (only if necessary)
OTNI 1423 M14 Abutment Screw (course thread) 17 Nm
Only small drop on the shoulder end of screw
OTNI 1422 M12 Abutment Screw (fine thread) 22 Nm
Only small drop on the shoulder end of screw
OTNI 1706 Luci Clamp Nut Set Screw 1 Nm apply Purple Loctite 221
M5 adjusting screws in the offset plate 5-10 Nm (see Table 7.2B for indication and instructions) No Loctite
M8 set screws of the pyramid receiver 15 Nm Apply Loctite
Internal Locking Screw
15 Nm
No thread locker
