L1324

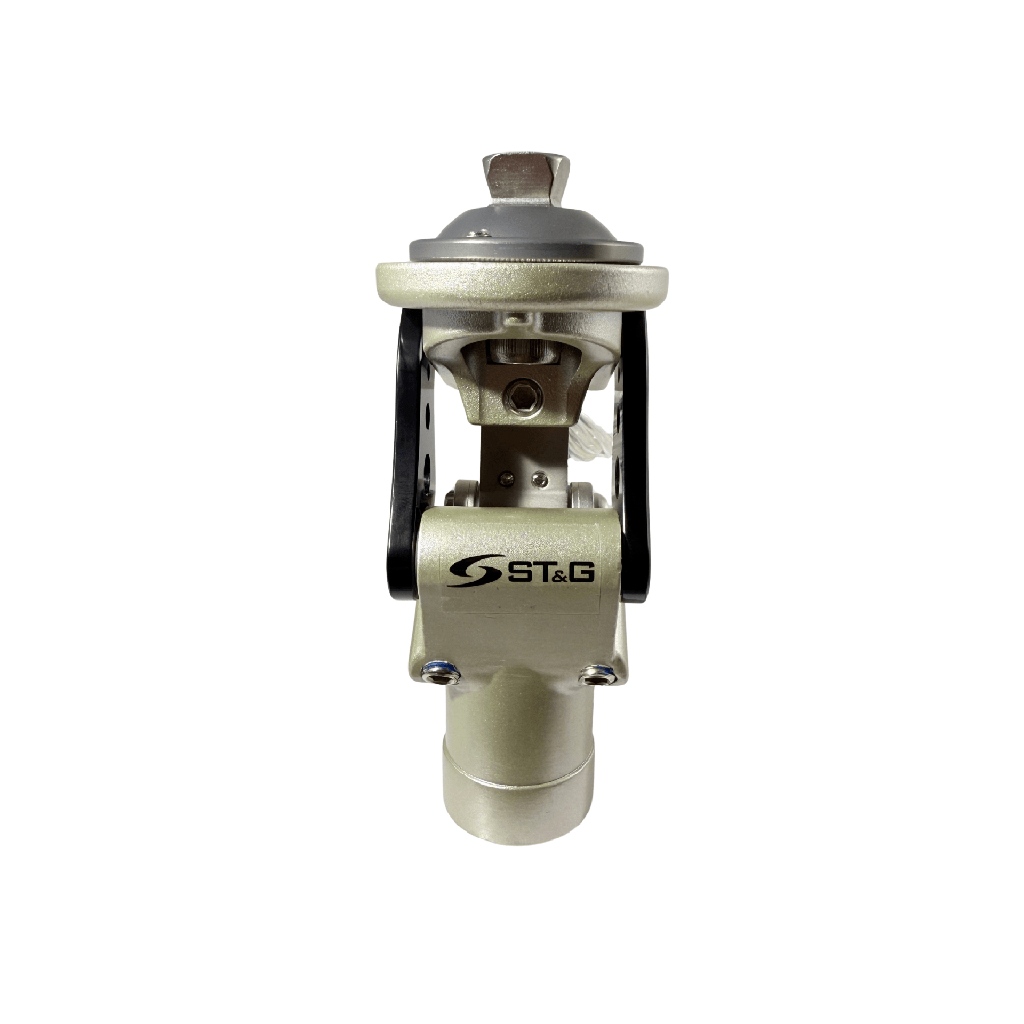

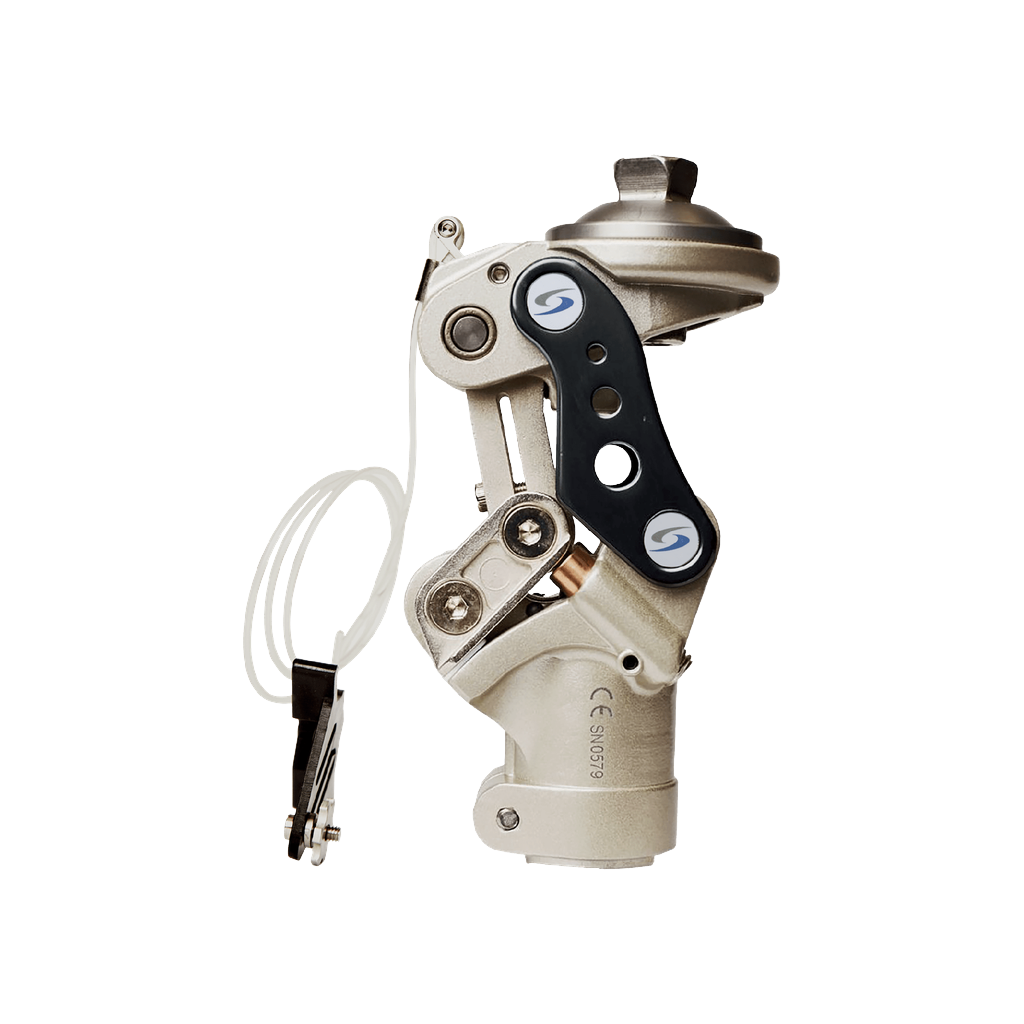

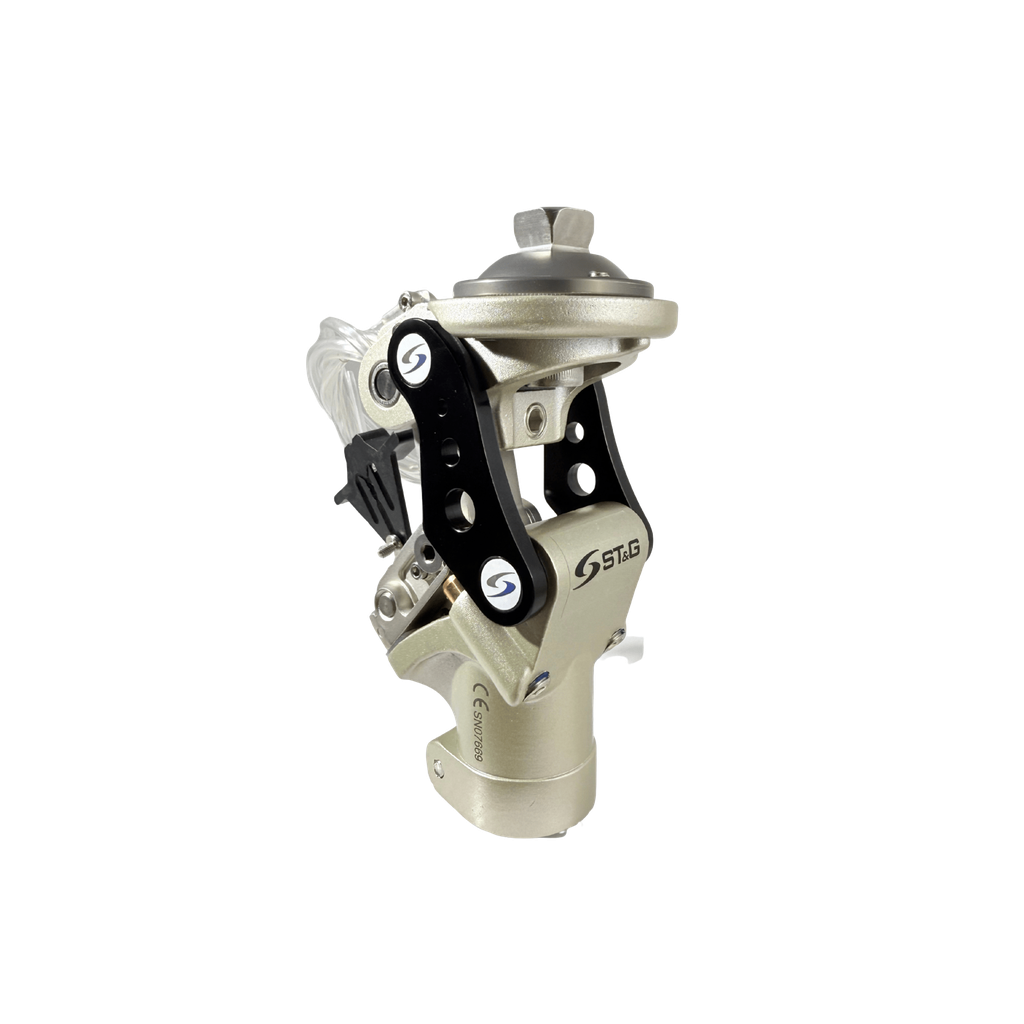

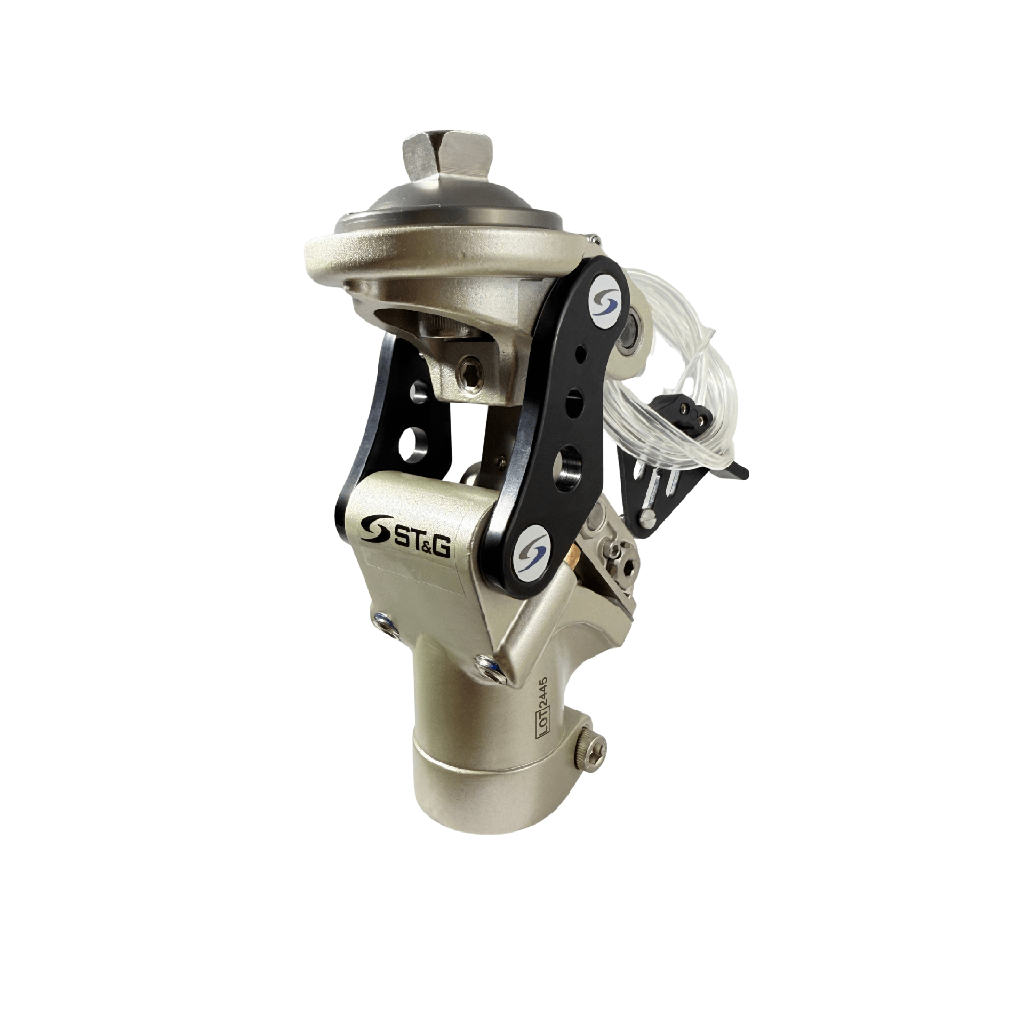

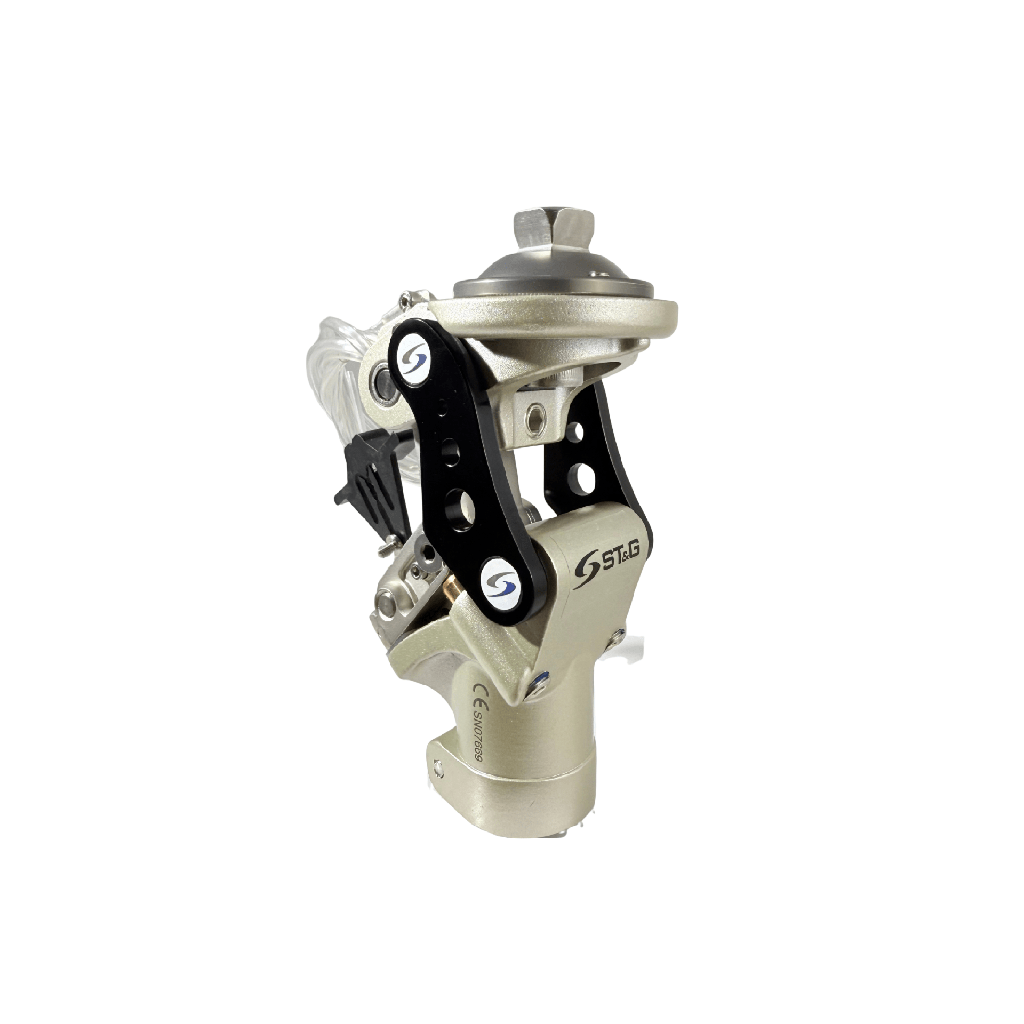

Stance Flexion 5-Bar Mechanical Manual Locking Knee

1,002.48 1,002.48
  • Very stable 5-bar knee with up to 12 degrees of stance flexion for maximum safety during stance
  • Constant friction adjustment for swing phase
  • Practitioner adjustable from high to low stability stance flexion
  • Proximal attachment has 2mm of A/P, M/L slide and rotation adjustment
  • Up to 12 degrees of stance flexion
  • Lock mechanism can also be disabled at a later time to provide free swing knee function
  • Best suited to be used for K1/K2 Level
  • The frame construction is made of superlight aluminum alloy and the 5-bar linkage is made of aircraft alloy
PDAC approved HCPCS code(s): L5611, L5845, L5850, L5925
  • Material
  • Adapter
Material: Aluminum
Activity Level: Moderate
K-Level: K1, K2
L-Codes: L5850, L5925, L5845, L5611

P/NL1324AP Pyramid AdapterL1324AL Lotus Adapter
Weight Limit125 kg / 275lb125 kg / 275lb
Build Height112 mm118.3 mm
Knee Center to Mid Dome23.5 mm29.8 mm
Knee Flexion135 Degrees135 Degrees
Product Weight848 g861 g
MaterialAluminumAluminum
Warranty2 years2 years

P/NDescription
PA13Pyramid Adapter for : L1324

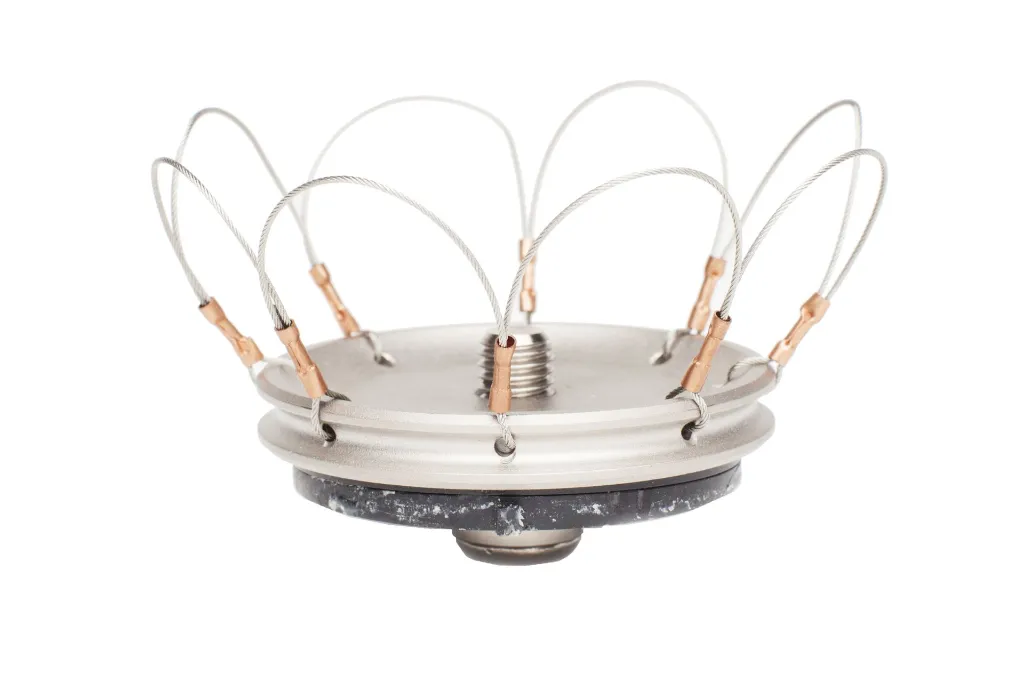

LA13Lotus Adapter for : L1324
LY13Lanyard for Manual Locking Knee: L1324

FastenerTorqueWrench
M6 Cap Screw12 Nm5 mm wrench
M10 Center Bolt18 Nm8 mm wrench
