L1322

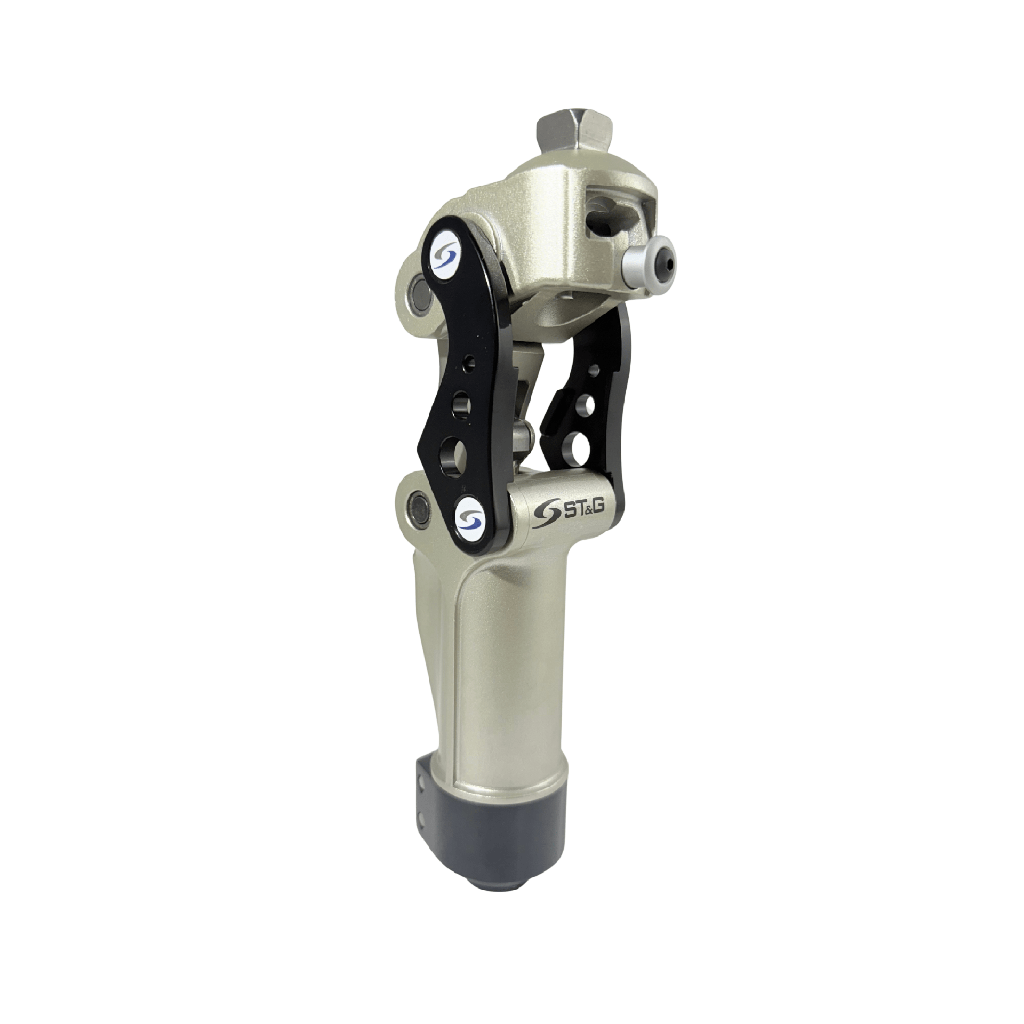

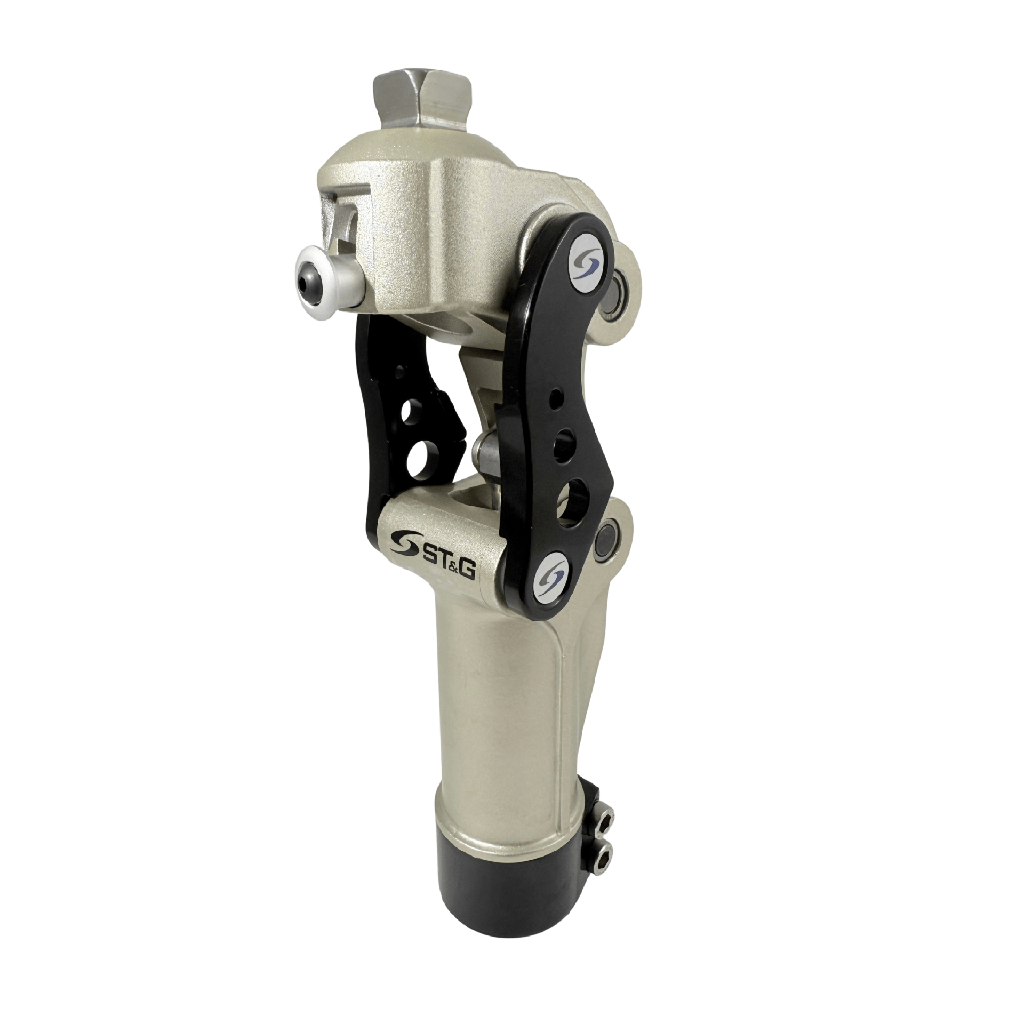

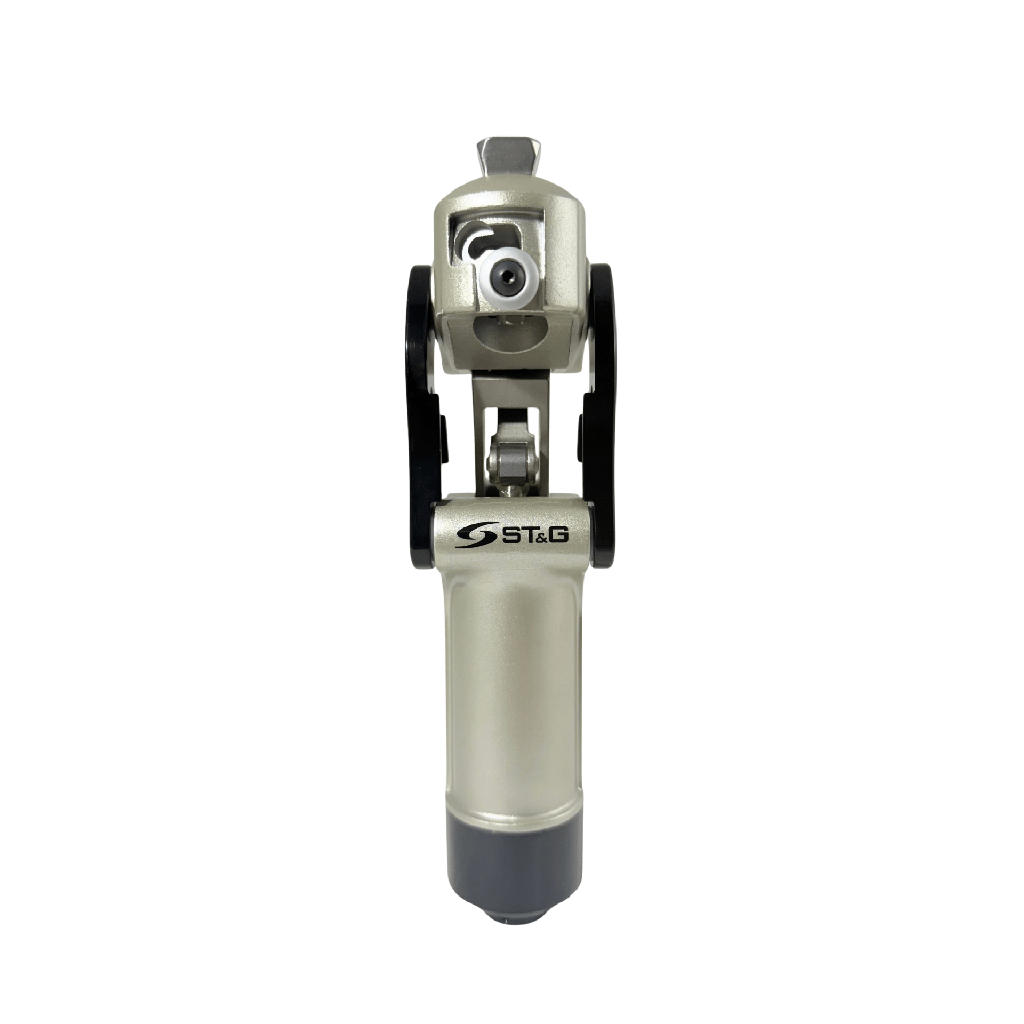

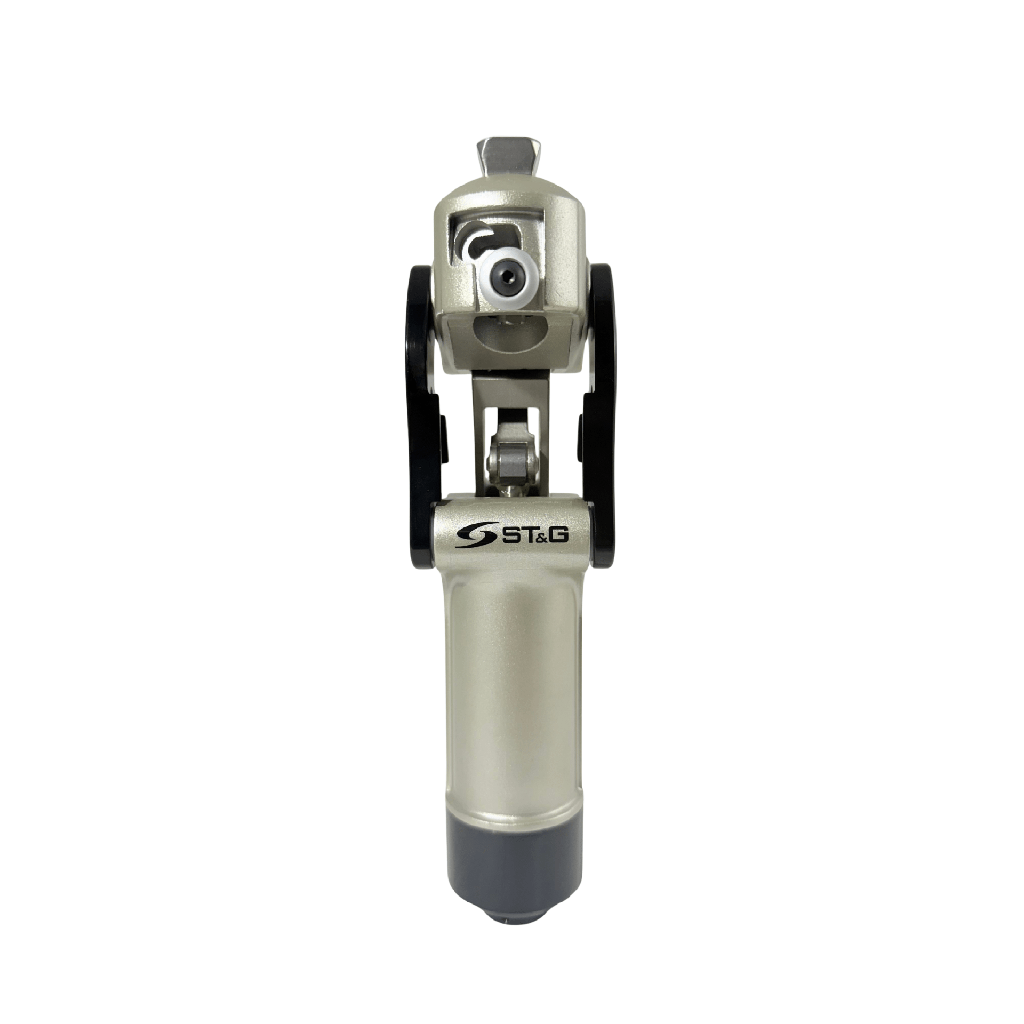

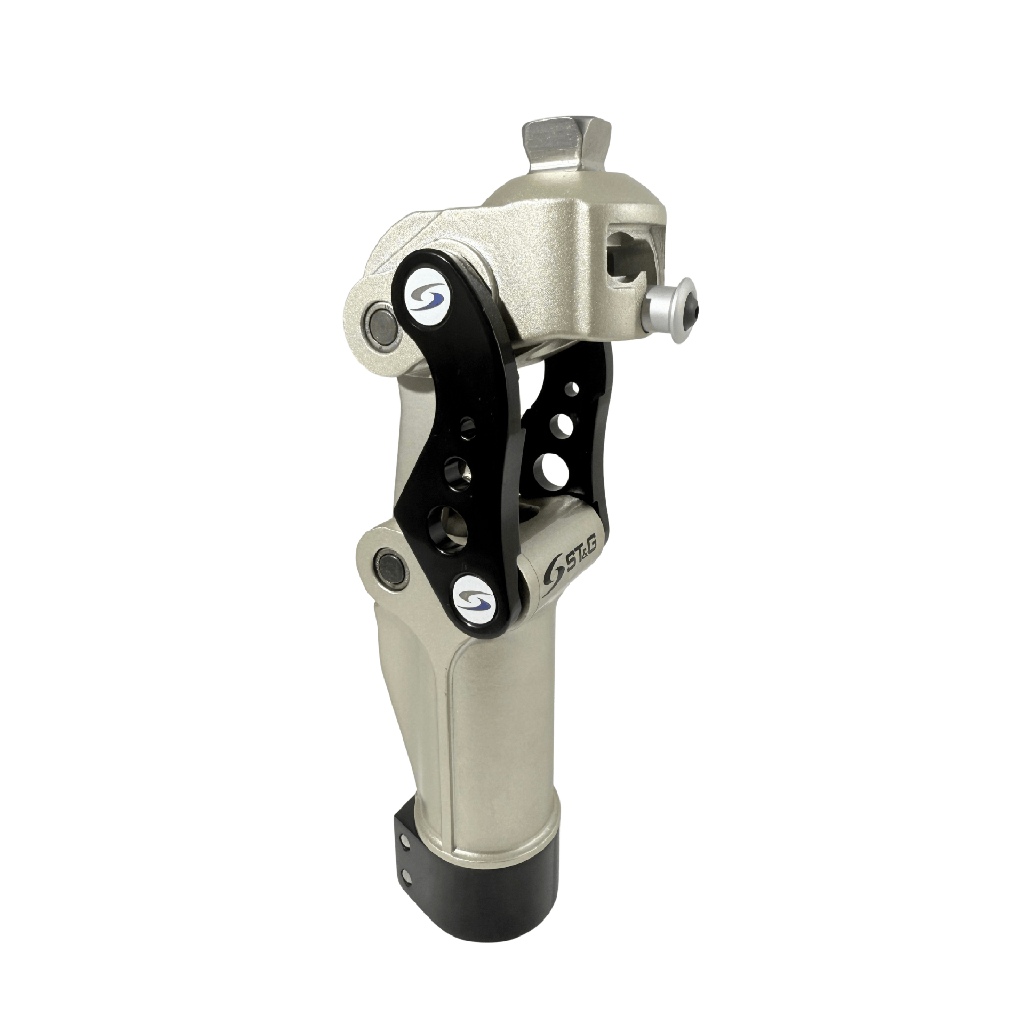

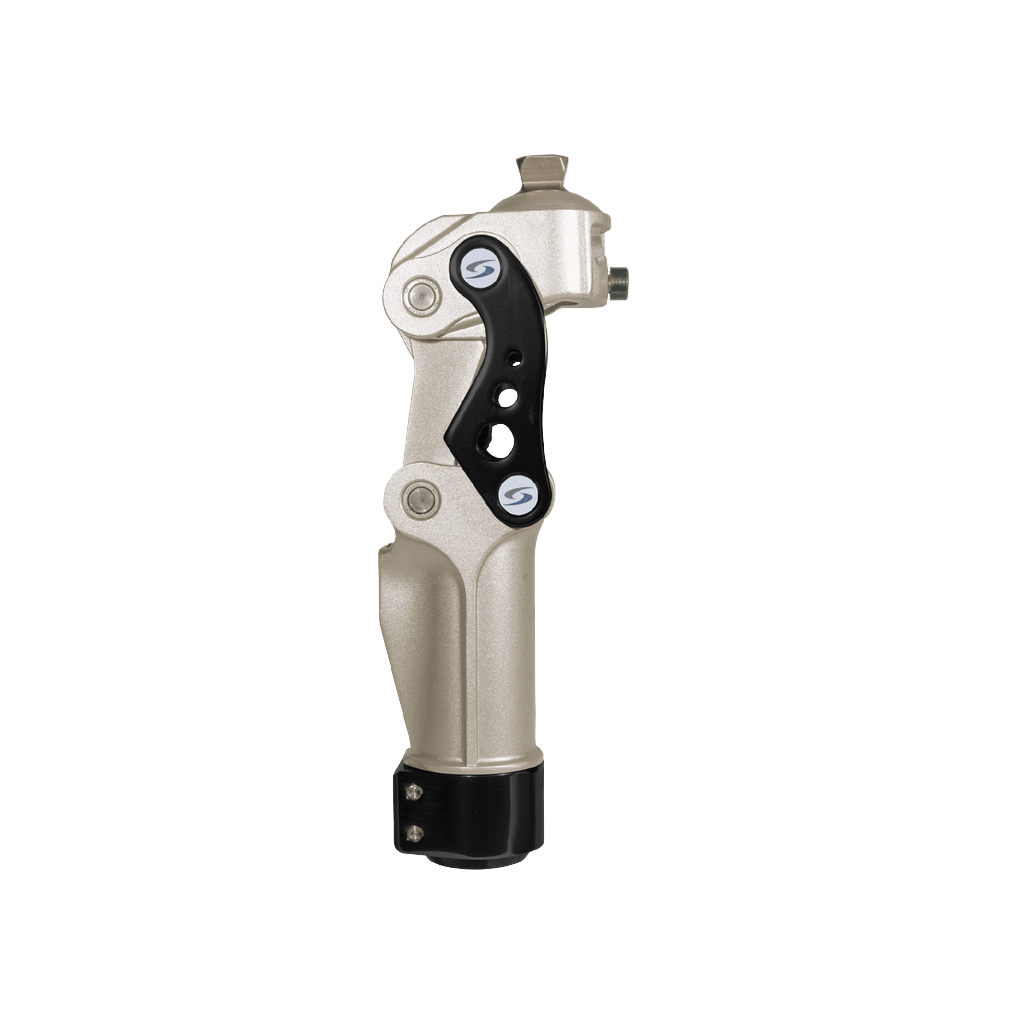

Polycentric Pneumatic 4 Bar Knee with Manual Lock

1,121.75 1,121.75
  • The L1322 manual locking 4-bar polycentric knee joint with pneumatic swing control is best suited to be used for K2 to moderate K3 level activity and high need for safety. The frame construction is made of superlight aluminum alloy and the 4-bar linkage is made of aircraft alloy (AA7075).
  • 4-bar polycentric knee joint with pneumatic swing control
  • Manual glide lock mechanism provides security
  • Independent flexion / extension adjustment
  • Built-in bearings which allow for ultra smooth walking movement
  • Frame construction made of superlight aluminum alloy
  • Adjustable extension assist
  • Provides secure safety when standing for long periods of time, tight confines, or uneven ground

PDAC approved HCPCS code(s): L5840, L5850, L5925

  • Material
  • Adapter
Material: Aluminum
Activity Level: High
K-Level: K3
L-Codes: L5850, L5925, L5840

P/N
Weight Limit125 kg / 275 lb
Build Height169.3 mm
Knee Center to Mid Dome28 mm
Knee Flexion135 Degrees
Product Weight875 g
MaterialAluminum
Warranty2 years

FastenerTorqueWrench
M6 Cap Screw12 Nm5 mm Wrench
