3180-M

Mechanical MagLock, BK

$ 203.49 $ 203.49

The MAGLOCK & MAGLOCK PLUS have been designed to ease the frustration of donning a pin lock liner for patients K1 to K3. The MAGLOCK 2.0 achieves up to 60 lbs of suspension strength while the MAGLOCK 2.0 Plus achieves up to 90 lbs. The large distal target allows the patient to be 10 degrees off center and still achieve suspension.

Neither version requires any maintenance, no charging and offers a fail safe way to turn on and off the magnetic system. The ultimate product for patients who have dexterity issues, issues with pin alignment, requires a caregiver or looking for a suspension system that offers an easier option for suspension.


*MPK Compatible

Warranty: 1 year


*Limbs with fluctuating edema, or soft bulbous distal ends may not be suitable for this system. May require design inclusive of a controllable window opening to allow the limb to donn completely, then apply necessary compressive total contact.

**Requires consistency to reach within 3mm to adhere to the Maglock.

Suggested HCPCS code(s): L5671

Material: Aluminum, Stainless Steel
Activity Level: High
K-Level: K3
L-Codes: L5671

P/NDescriptionWeight LimitWeightBuild HeightSuspension Strength
3180-MMaglock 2.0136kg/300lb278g/.6lb22cm/0.87in60lb

P/NDescription

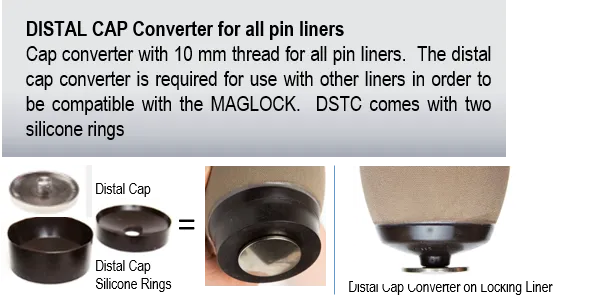

DSTCDistal Cap Converter for pin lock liners

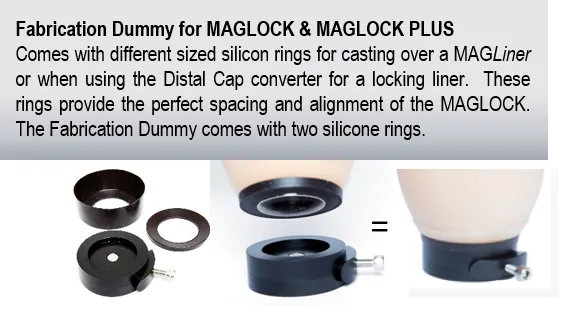

3180-1MDummy for Maglock 2.0

MAGLOCK Installation

MAGLOCK Installation

Maglock Fitting Assessment

Maglock Fitting Assessment

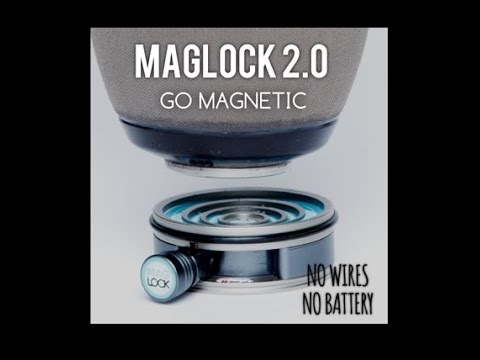

MAGLOCK 2.0 - No Battery No Wires

MAGLOCK 2.0 - No Battery No Wires

Maglock Check Socket Fabrication Video

Maglock Check Socket Fabrication Video

MAGLOCK Casting Video

MAGLOCK Casting Video

MAGLOCK and MAGLOCK 2.0 – What's different?

MAGLOCK and MAGLOCK 2.0 – What's different?

MAGLOCK Lamination

MAGLOCK Lamination

MAGLOCK Mold Rectification and Angle Correction

MAGLOCK Mold Rectification and Angle Correction
