DESCRIPTION

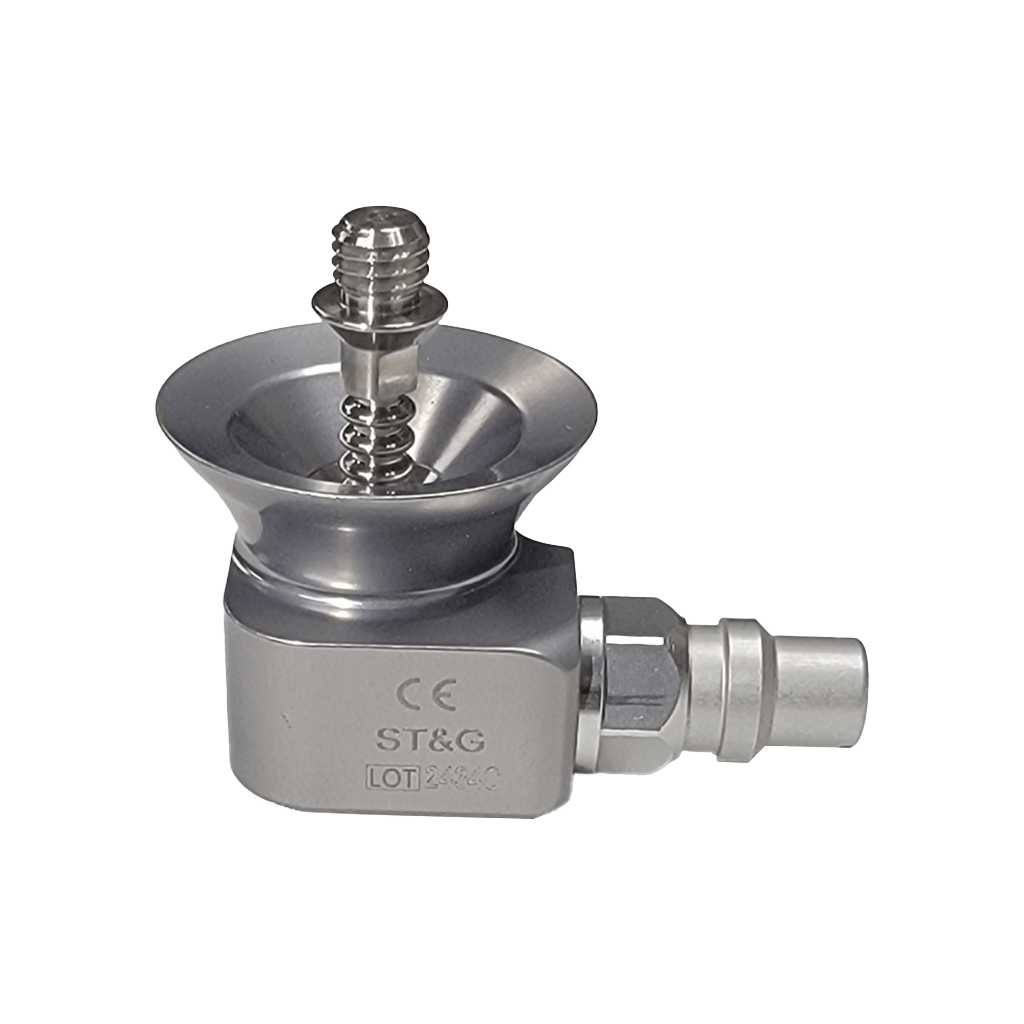

The 3120 Link Clutch Lock is an aluminum bodied, one-way smooth engagement lock, with push button release, and can be used for high impact use, e.g., walking, jogging, and occasional running.
SPECIFICATIONS:
Overall Dimensions assembled:
Height (lock body only) 37mm / 1.5in
- This lock is best fitted with patients having a contracted joint or an unusual, non-optimal pyramid alignment
- The lock is delivered assembled and ready to be integrated into the socket during the lamination or thermoplastic process.
- A dummy system assures easy lamination.

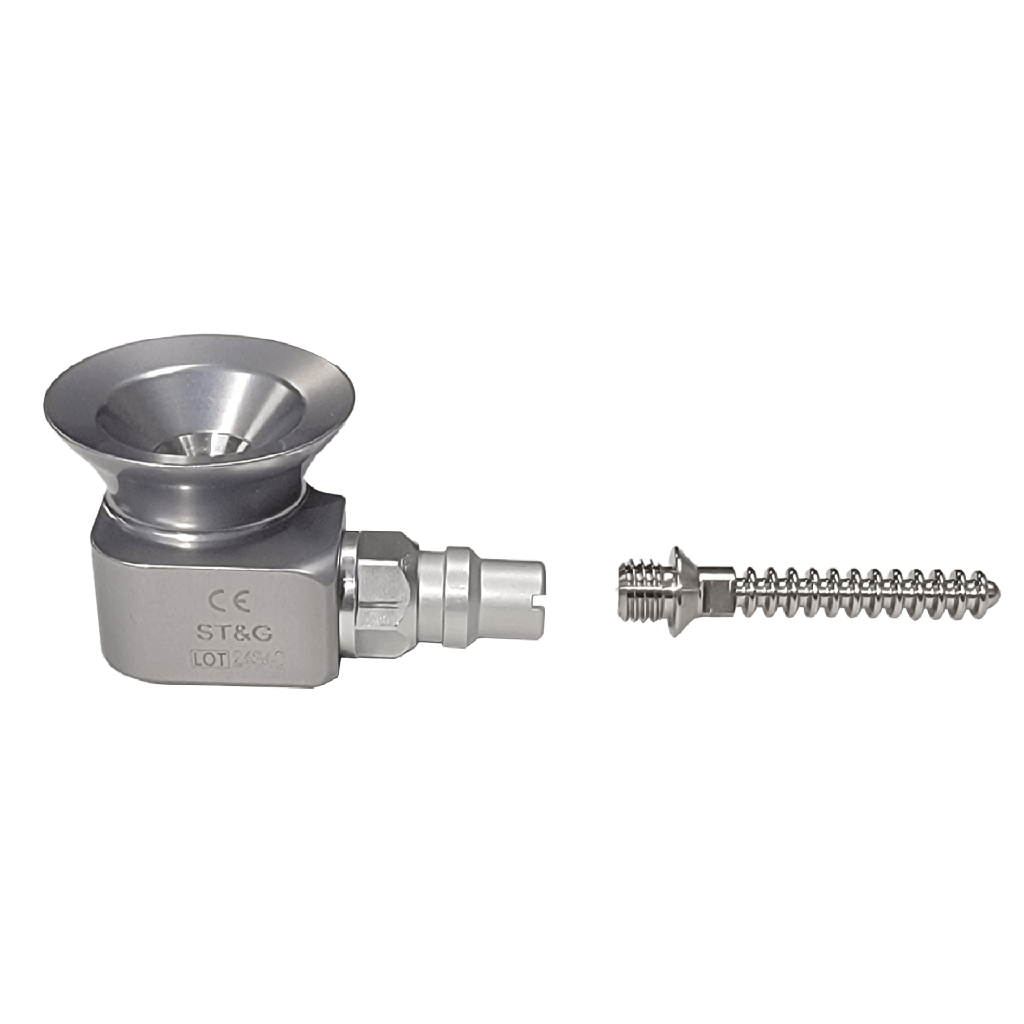

- The CLP pin makes it easy to lock or to unlock the liner and offers a secure connection between liner and prosthesis.
- Uses new easy to release clutch unit.
- Clutch Lock Mechanism is easily replaceable

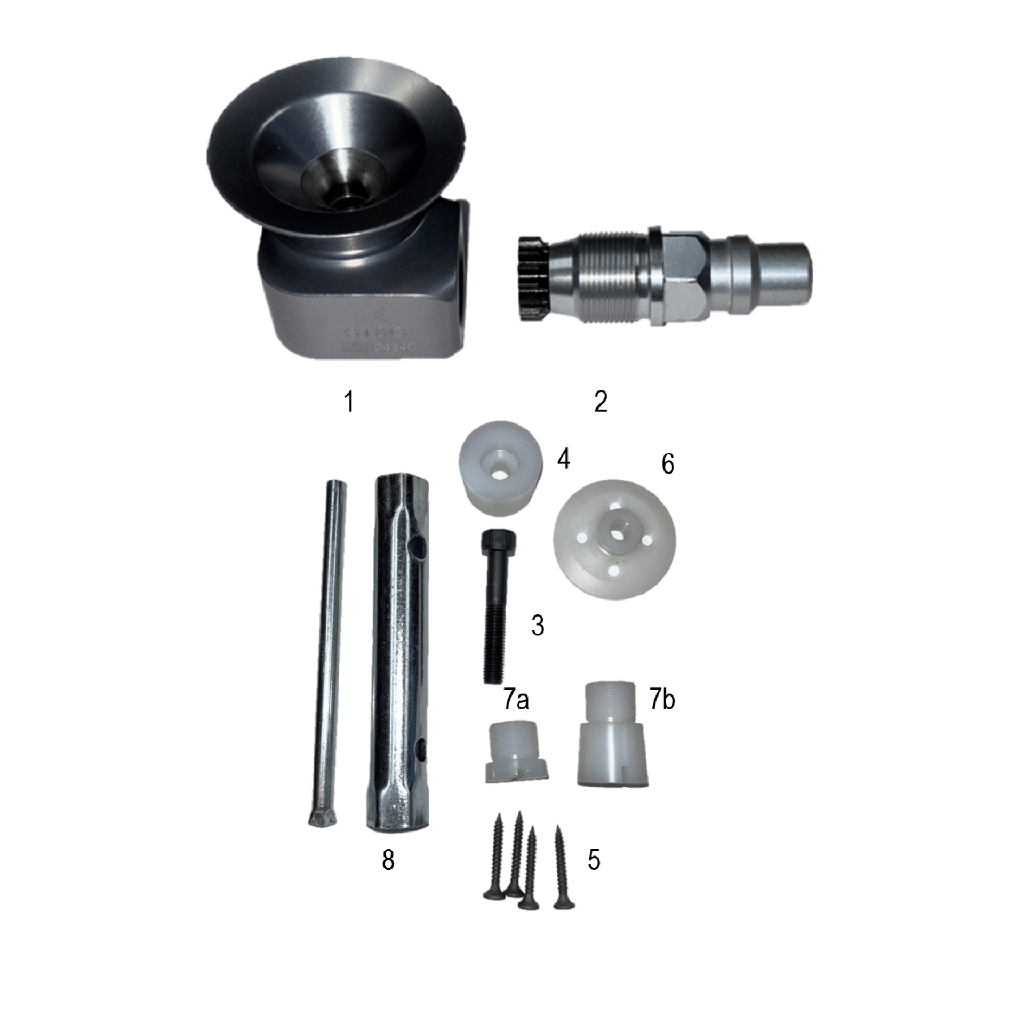

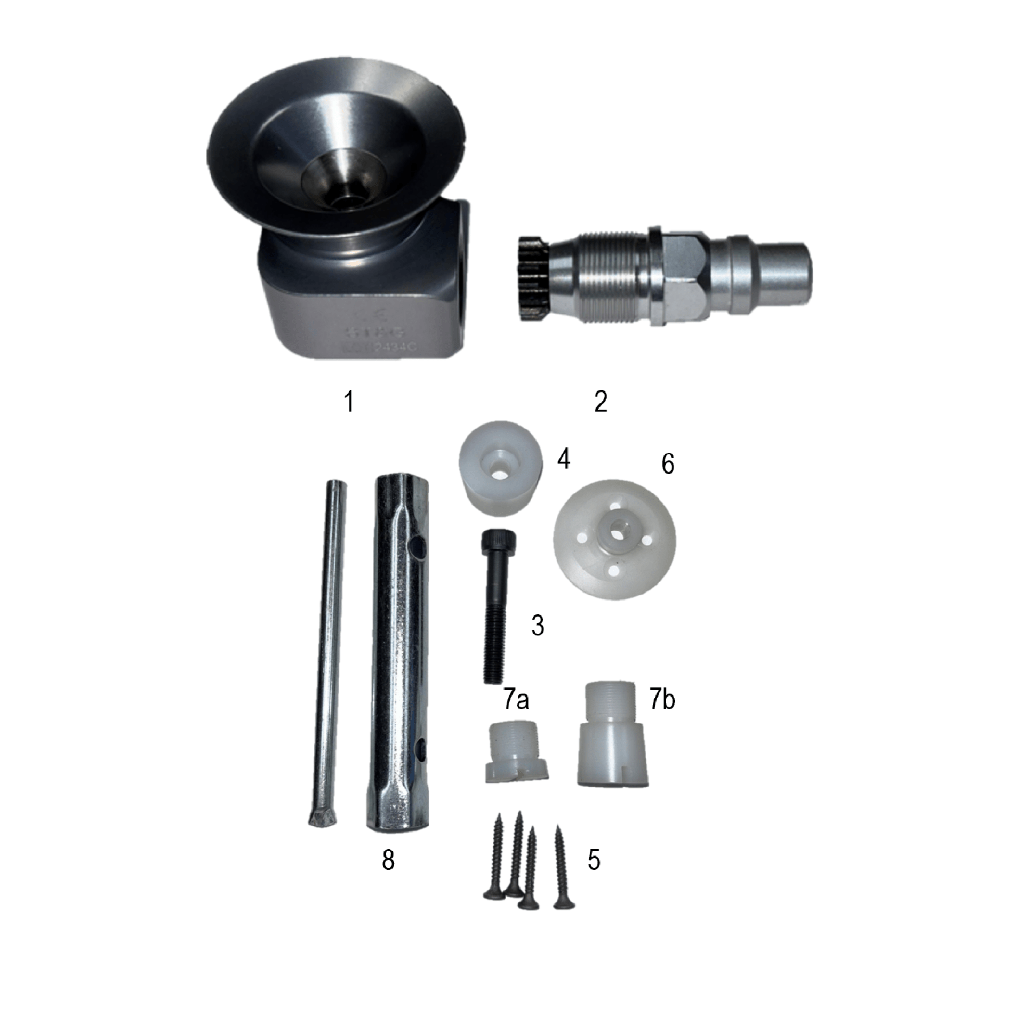

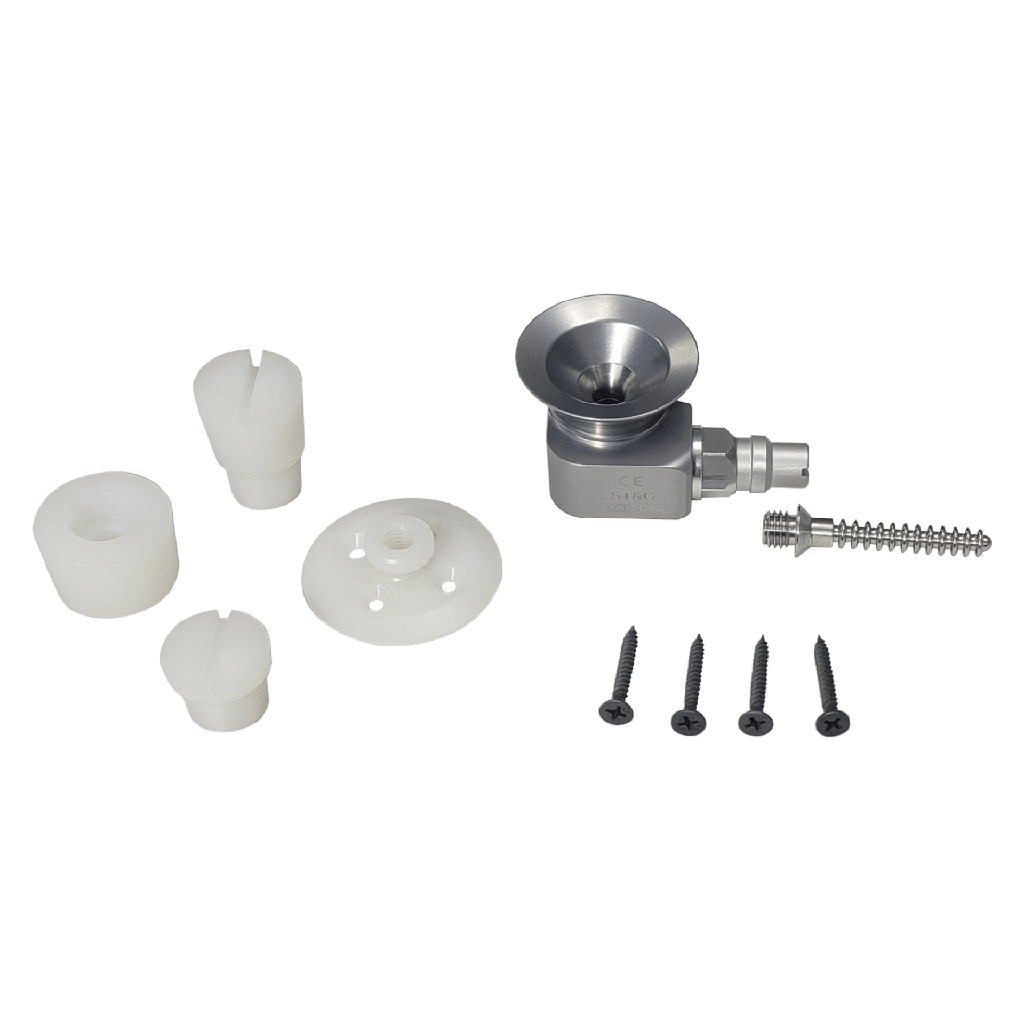

Includes:
Clutch Lock Body with mechanism
Clutch Lock Pin
Lamination Dummy kit
This clutch lock is best fitted with patients having a contracted joint or an unusual alignment line where a typical lock/pyramid component would not end up in the optimal location. The lock can be laminated into the socket, and then transferred with the alignment before final lamination. A dummy system assures easy lamination. The CLP pin makes it easy to lock or to unlock the liner and offers a secure connection between liner and prosthesis. Uses new easy to release clutch lock unit.
Warranty: 1 year from invoice date
Specifications subject to change
