305064

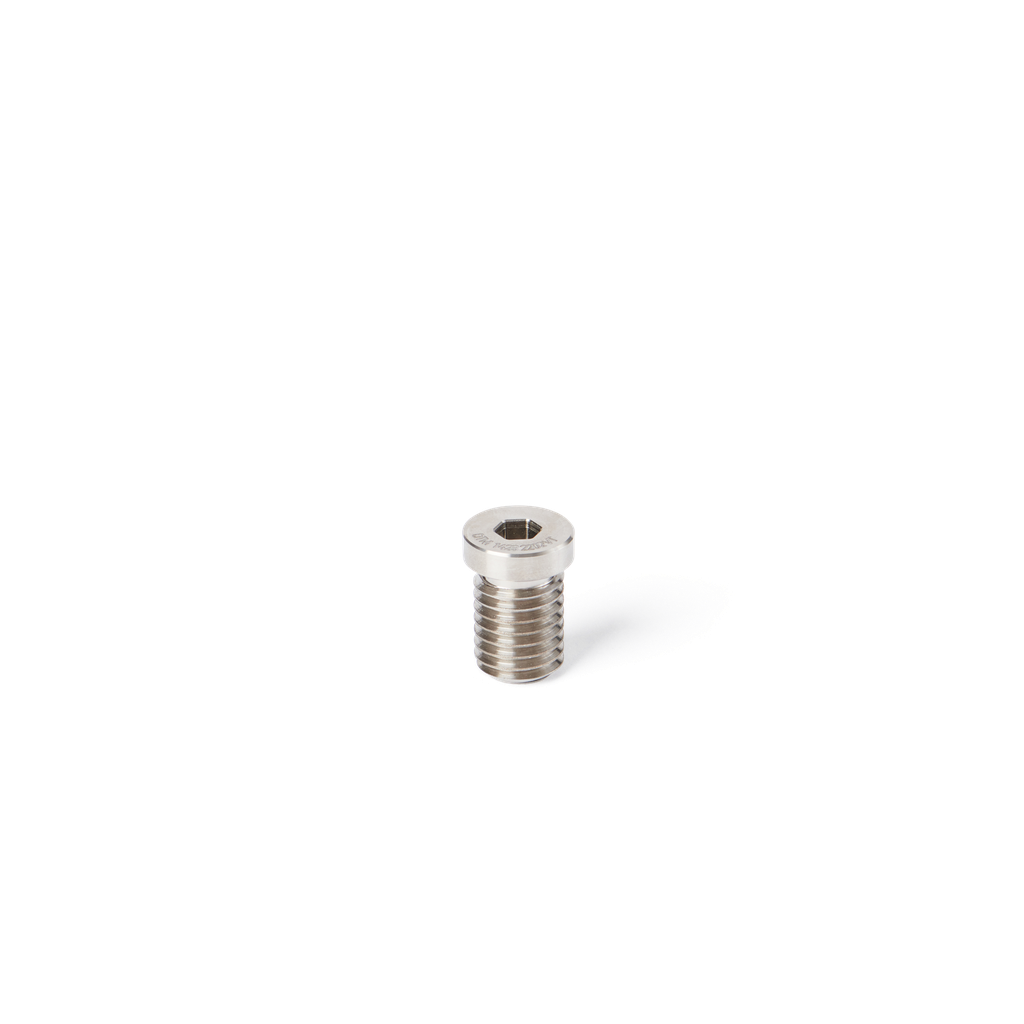

Hermle Abutment Screw

Description: 305064 is the Hermle Abutment Screw only, without the 305138 Safety Ring, or the 305137 Taper Sleeve.

Product description

The 305064 Hermle Abutment Screw is for the clamp connector and is connected directly to the dual cone by using the 305137 Taper Sleeve. This is the part that the connector will attach to.

  • Warranty: 1 yr
  • Expected Period of Use: 2 yrs
  • Maximum Weight Limit: 275 pounds (Account for a buffer for load spiking)
NOTE: ABC Scope of Practice requires training from factory representative in order to provide any Osseointegration components, and is restricted to the corresponding non-invasive componentry. ST&G requires any Certified Prosthetist be trained and on our "Osseointegration Certified" list to process an order. Instruction can be offered prior to processing an order so the order can be completed and shipped.

These products are only available for purchase within the United States and Canada. For more information or to place an order, please call our office. Our team will be happy to assist you!
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
This product is not available for delivery to your region. Please contact us if you believe this is in error.
Contact Us
Material: Stainless Steel

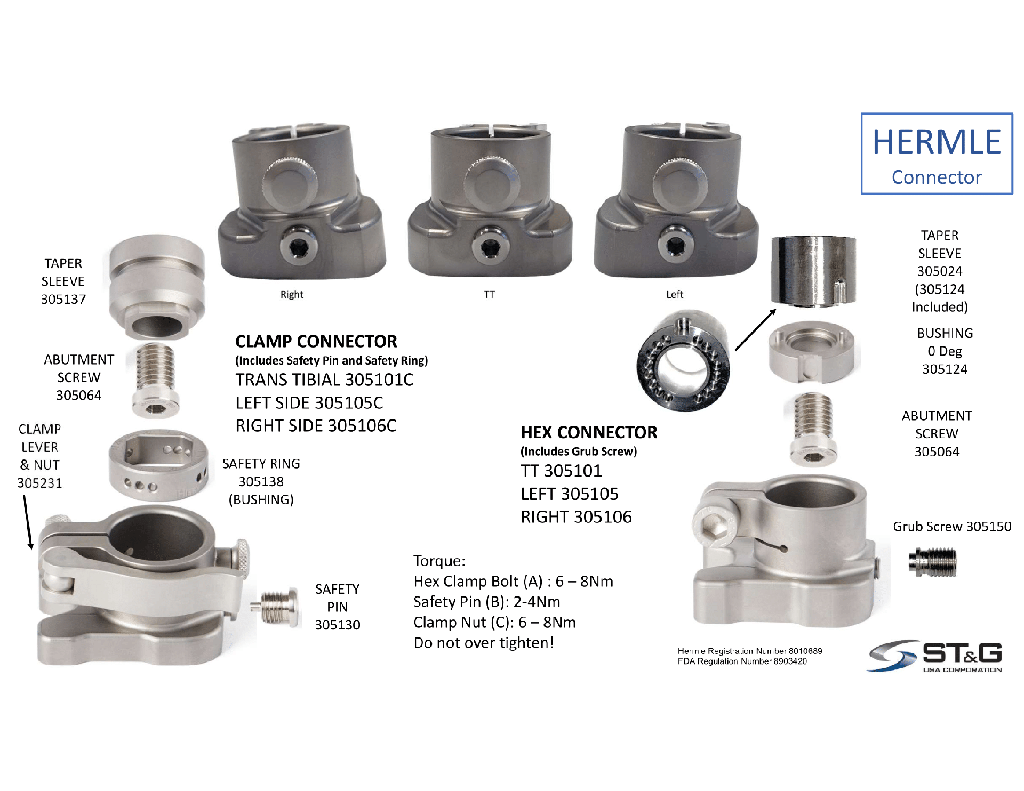

P/NProduct DescriptionMaterial
305064Hermle Abutment ScrewStainless Steel

P/NProduct DescriptionMaterial
305101C
Hermle Clamp Connector TT
Titanium
305105C
Hermle Clamp Connector Left
Titanium
305106C
Hermle Clamp Connector Right
Titanium
305137Hermle Taper SleeveTitanium
305138
Hermle Safety Ring
Titanium
305130
Safety Pin
Stainless Steel
305231
Clamp Lever and Nut
Stainless Steel
305101
Hermle HEC Connector TT
Titanium
305105
Hermle HEX Connector Left
Titanium
305106
Hermle HEX Connector Right
Titanium
305024
Hermle HEX Taper Sleeve
Titanium
305124
Hermle HEX Bushing
Titanium
324001
Tool Kit (RH-Puller and Taper Sleeve Spanner Tool)
Titanium, Stainless Steel
324001LH
Tool Kit (LH-Puller and Taper Sleeve Spanner Tool)
Titanium, Stainless Steel

P/N
Description
Torque
305064
Abutment Screw (On OTN DCA)
17Nm
305130
Safety Pin
2-4Nm
305105
Grub Screw (Inserted from inside connector)
2-4Nm

Clamp Nut
6-8Nm
