| P/N | Description | Slide Distance | Weight Limit |
|---|---|---|---|

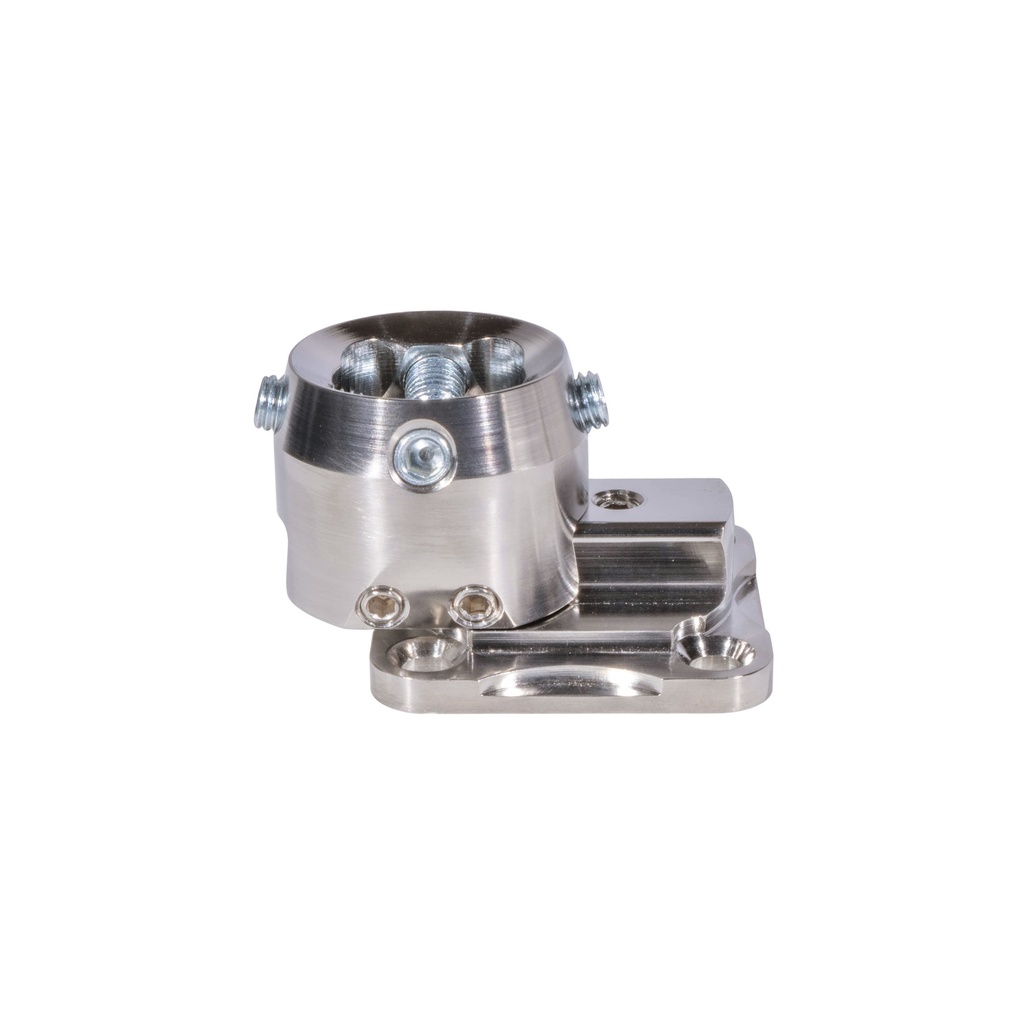

| 1718T | sliding 4 hole receiver | 12 mm maximum | 136 kg/300 lbs |
P/N | Description |
1252T | Tube Clamp, Titanium Pyramid |
1252S | Tube Clamp, Stainless Steel Pyramid |
| Fastener | Torque | Wrench |
|---|---|---|
| M6 Set Screw (Slide) | 5 Nm | 3 mm Hex |
M6 Flat Head Mounting Screw | 10 Nm | 4 mm Hex |
| M8 Set Screw (Alignment Screw) | 15 Nm | 4 mm Hex |
Instructions for Use (IFU)
Product Information
