1425

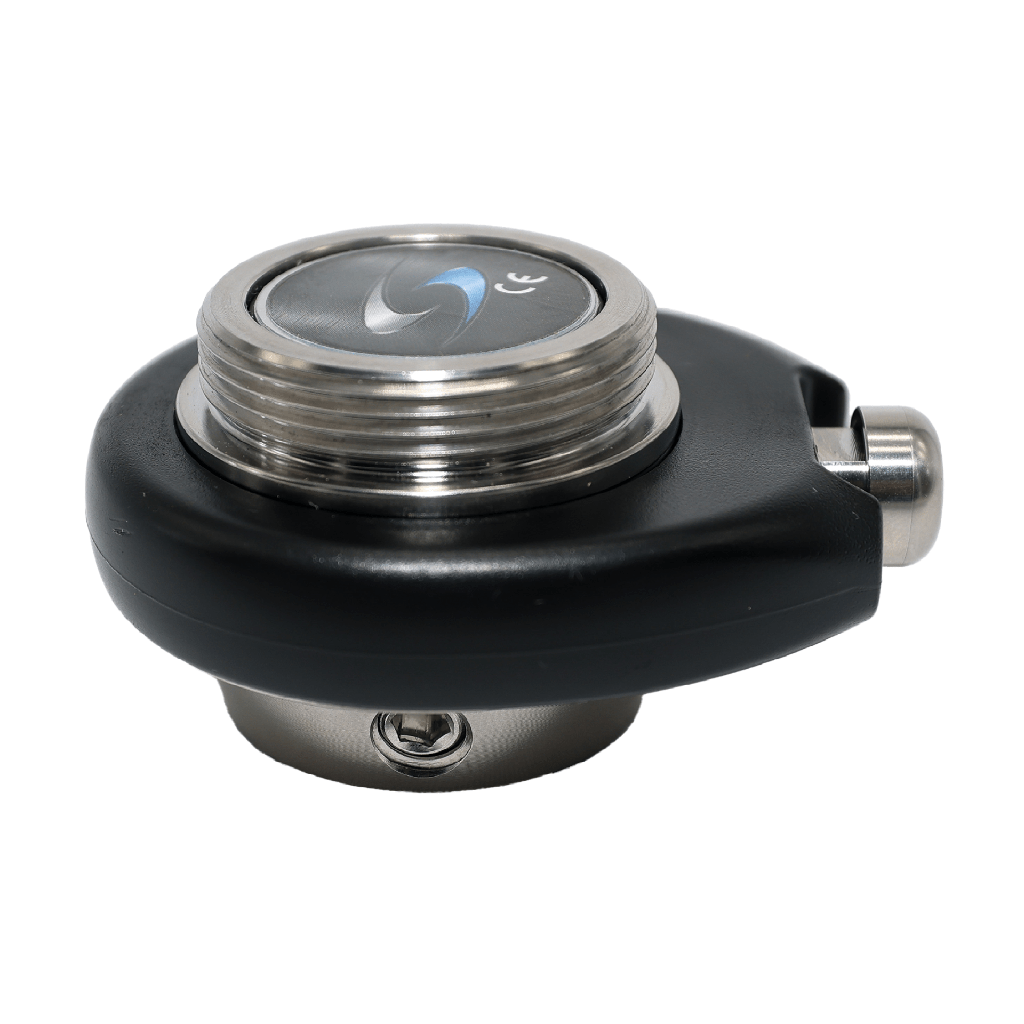

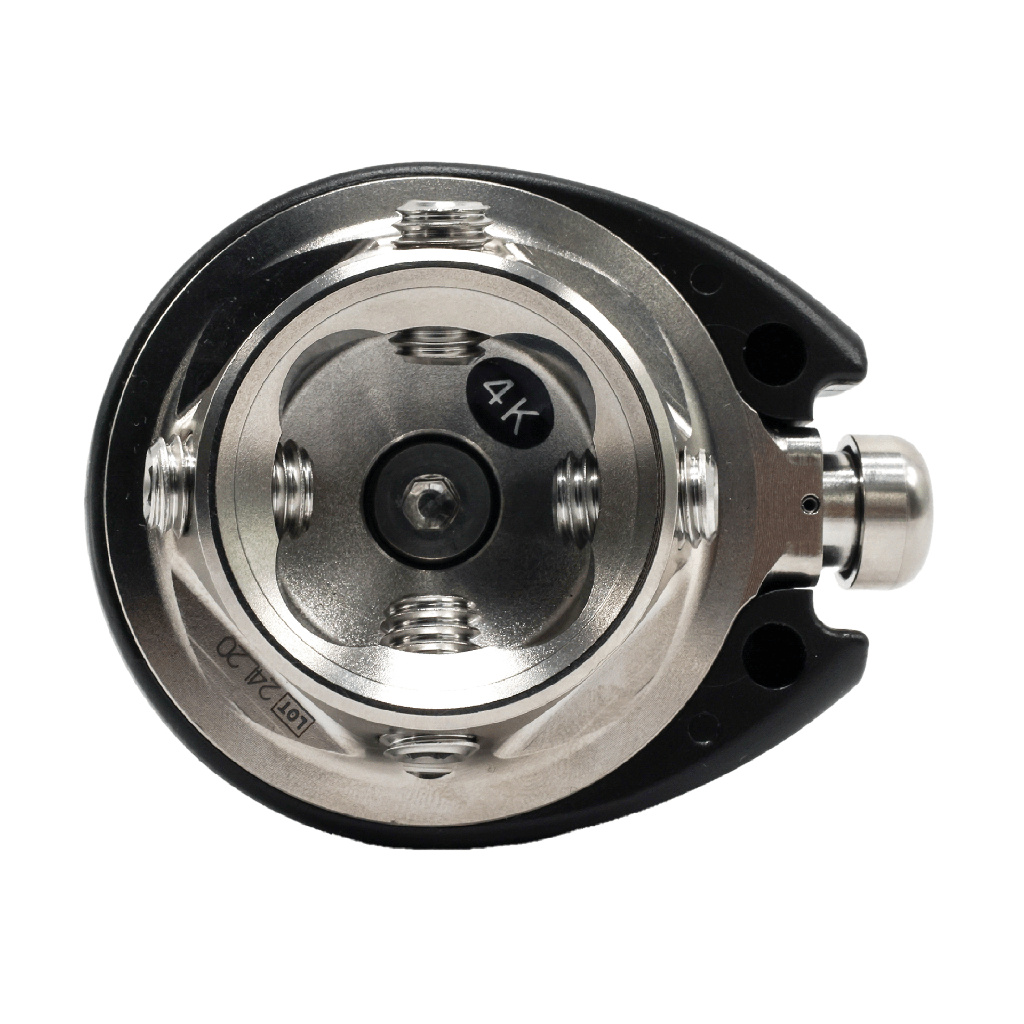

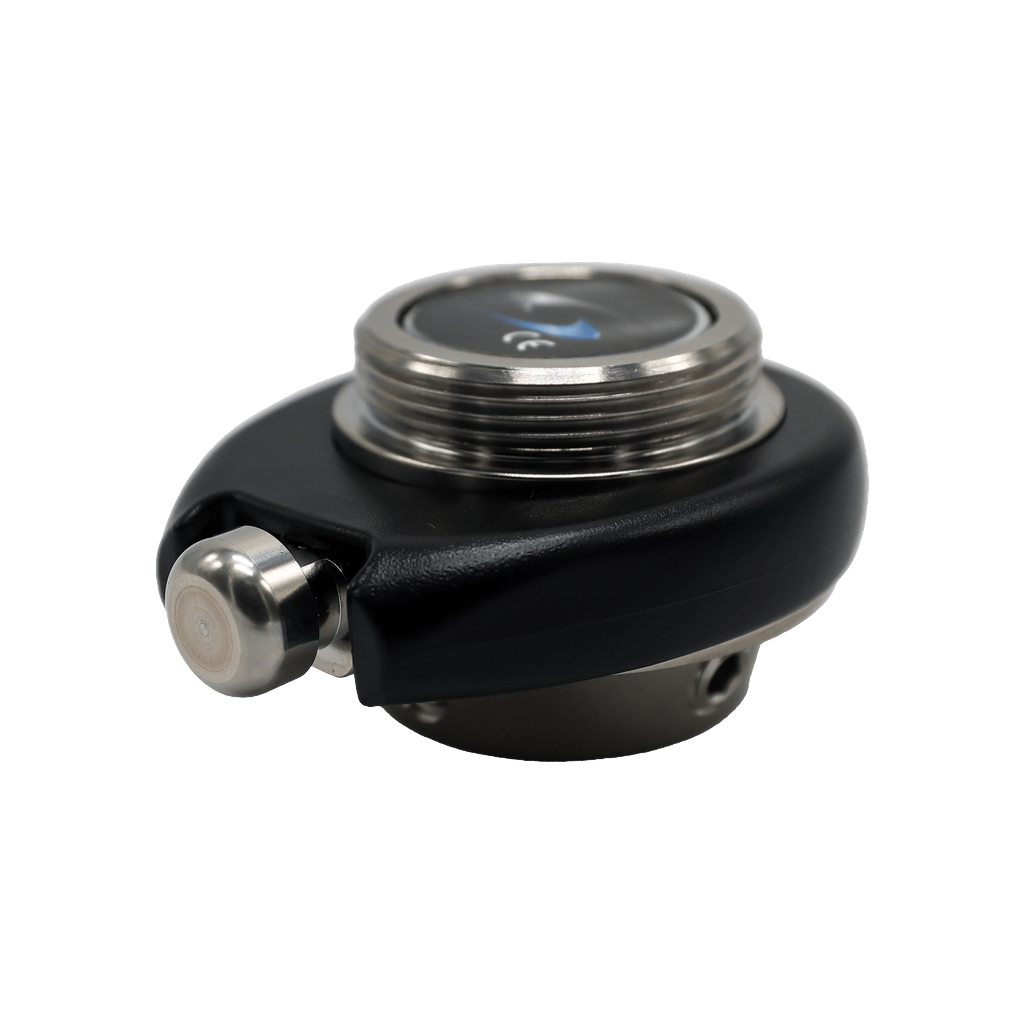

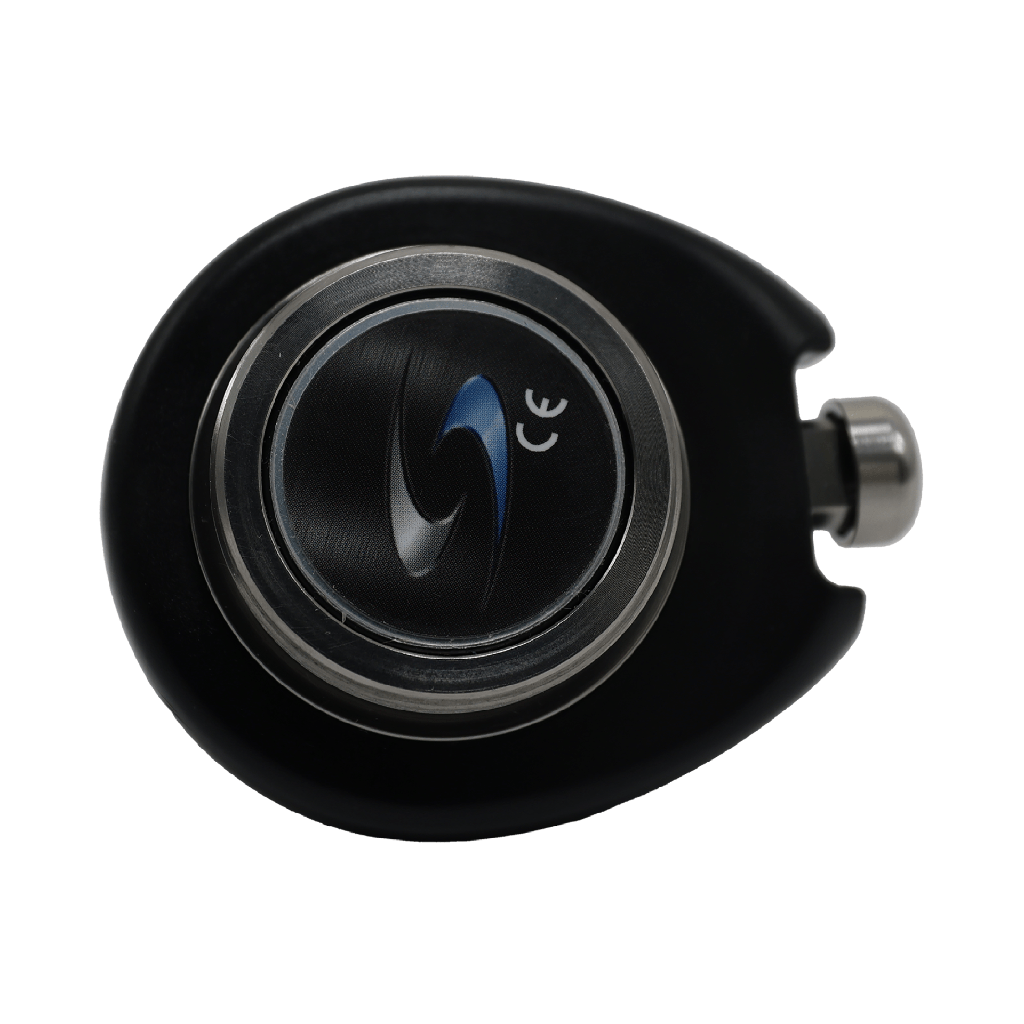

Knee Rotator with Threads

577.50 577.50
  • Lightweight and durable construction: made of lightweight titanium alloy and durable stainless steel.
  • Light button actuation: Easy to operate button, even for those with weak finger dexterity, partial fingers, or upper extremity users
  • Designed for long Trans-Femoral levels: Works in conjunction with a Threaded 4-hole socket adapter, to a pyramid on the knee joint. Possible to use with an offset plate
  • Good option for Osseointegration, compatible with Hermle adapter using 4-hole threaded base
  • High corrosion resistance: titanium and stainless steel help to suppress internal corrosion caused by moisture such as sweat.
  • 100 kilogram / 220 pound weight limit
  • Not for activities with water submersion
  • Secure button housing: Built in fairing helps prevent accidental bumping of release button.

Tighten according to the specified torque value. Incorrect torque can cause the rotator to become loose, damaged, or to malfunction, and will void warranty.

Warranty: 2 Years

Suggested L Code: L5926

  • Material
Material: Titanium
L-Codes: L5926

P/N1425
Product Weight170 g
MaterialTitanium
Proximal ConnectionPyramid
Distal ConnectionFemale Receiver
Assembly Height26 mm
Convolution Range360°
