1336

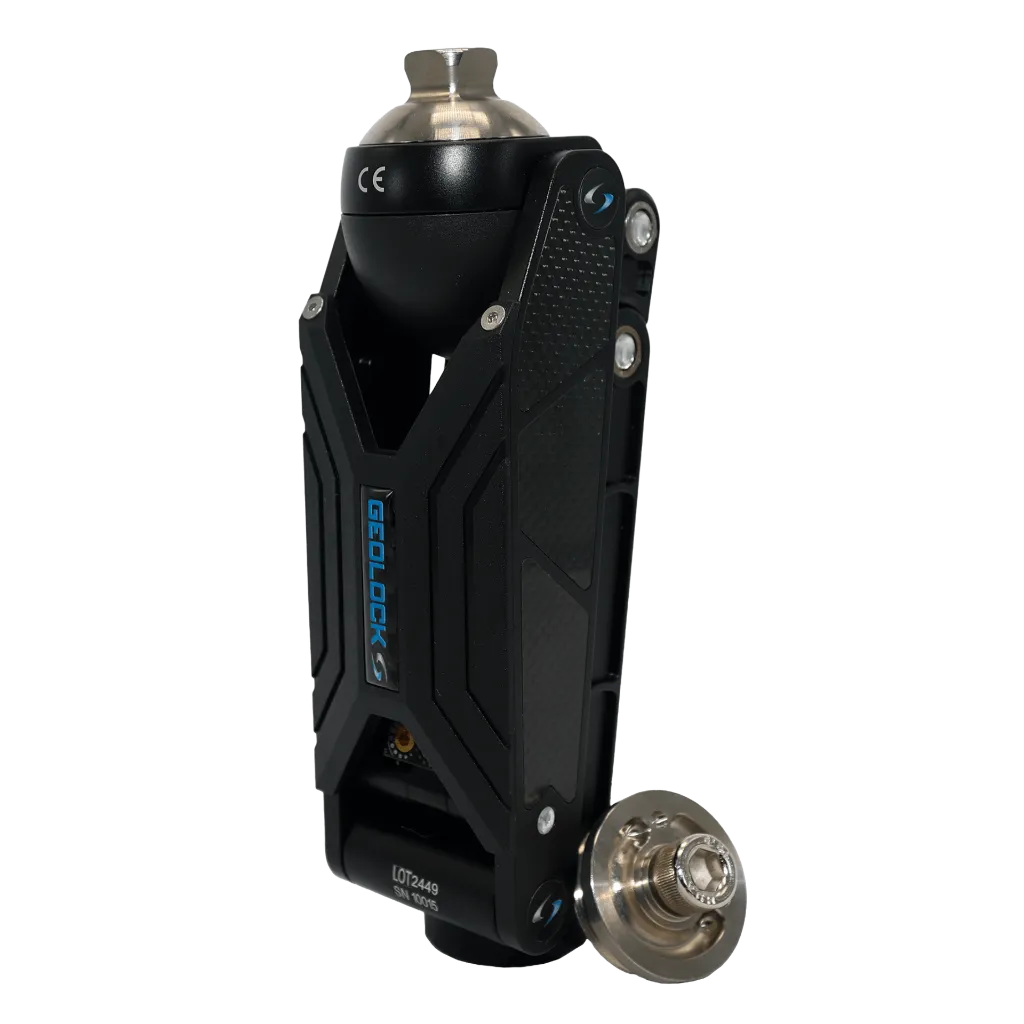

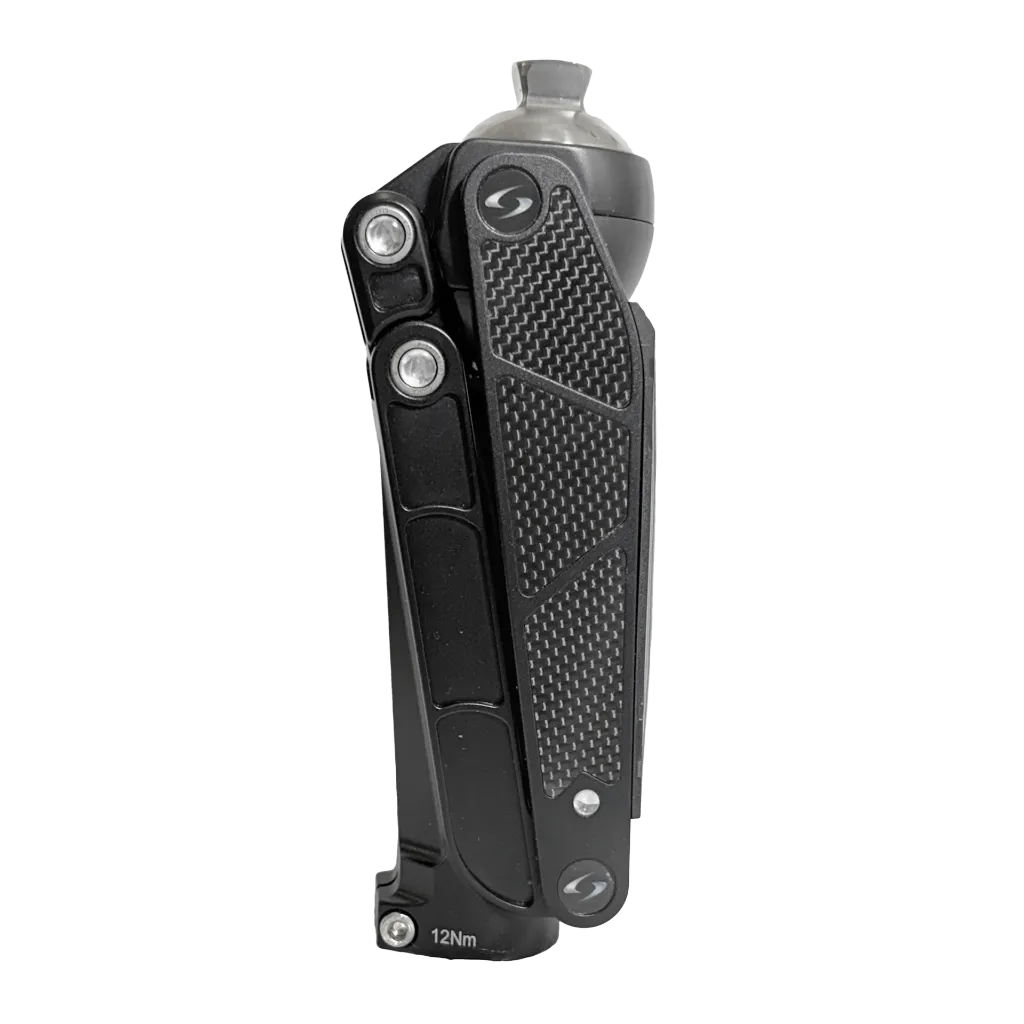

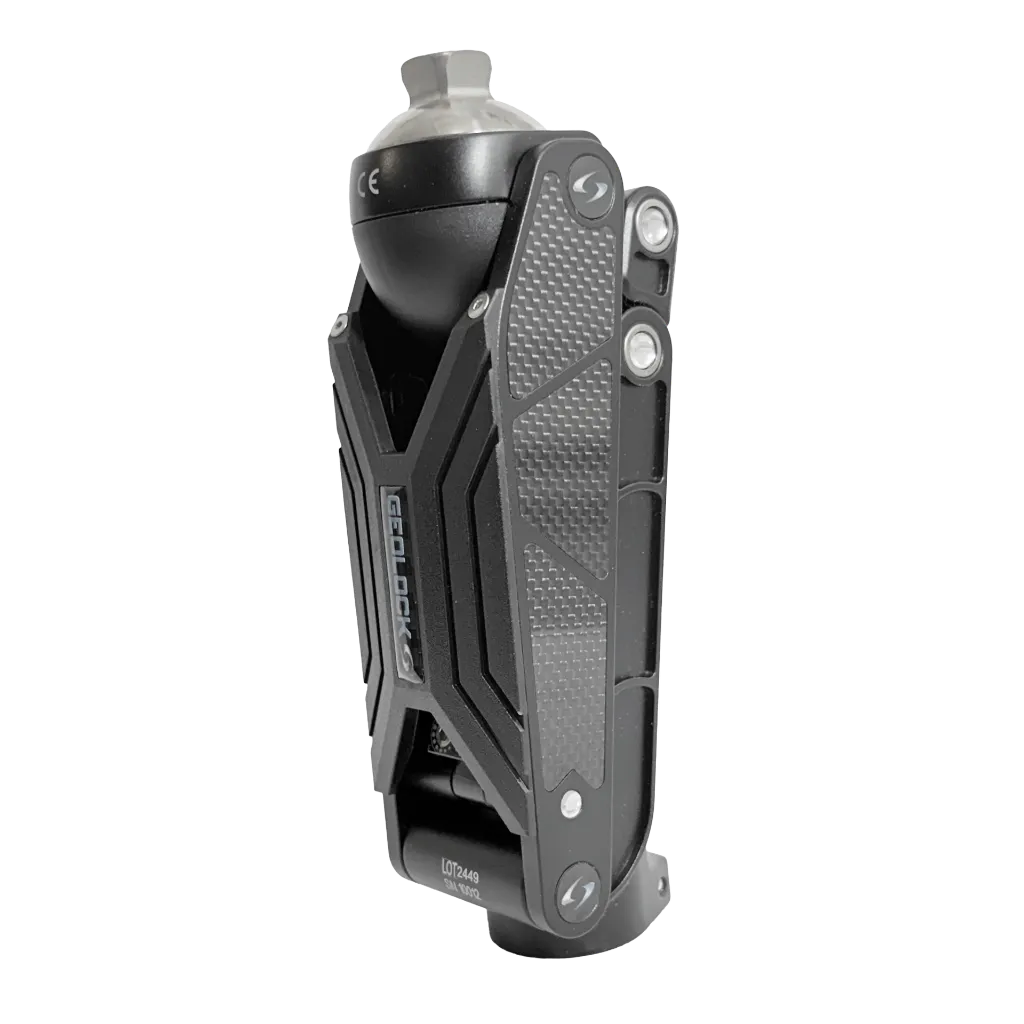

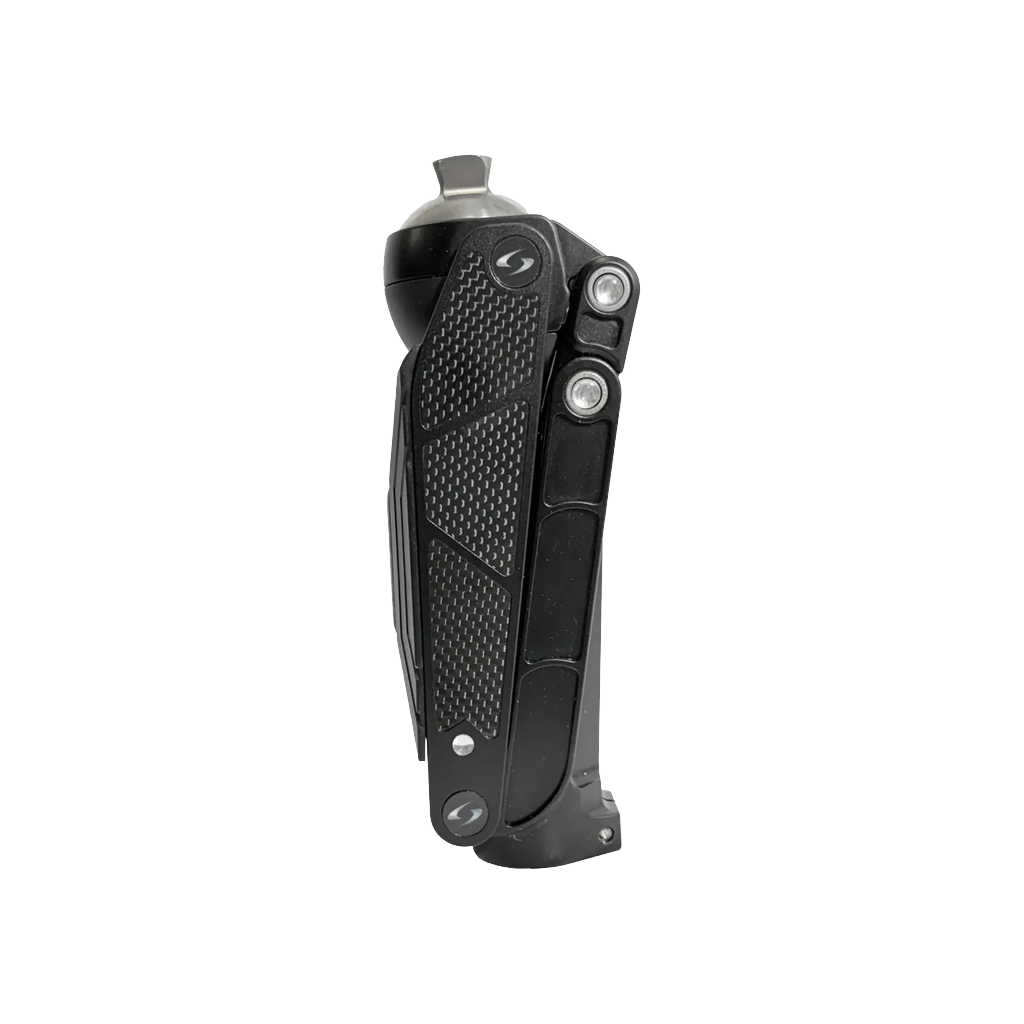

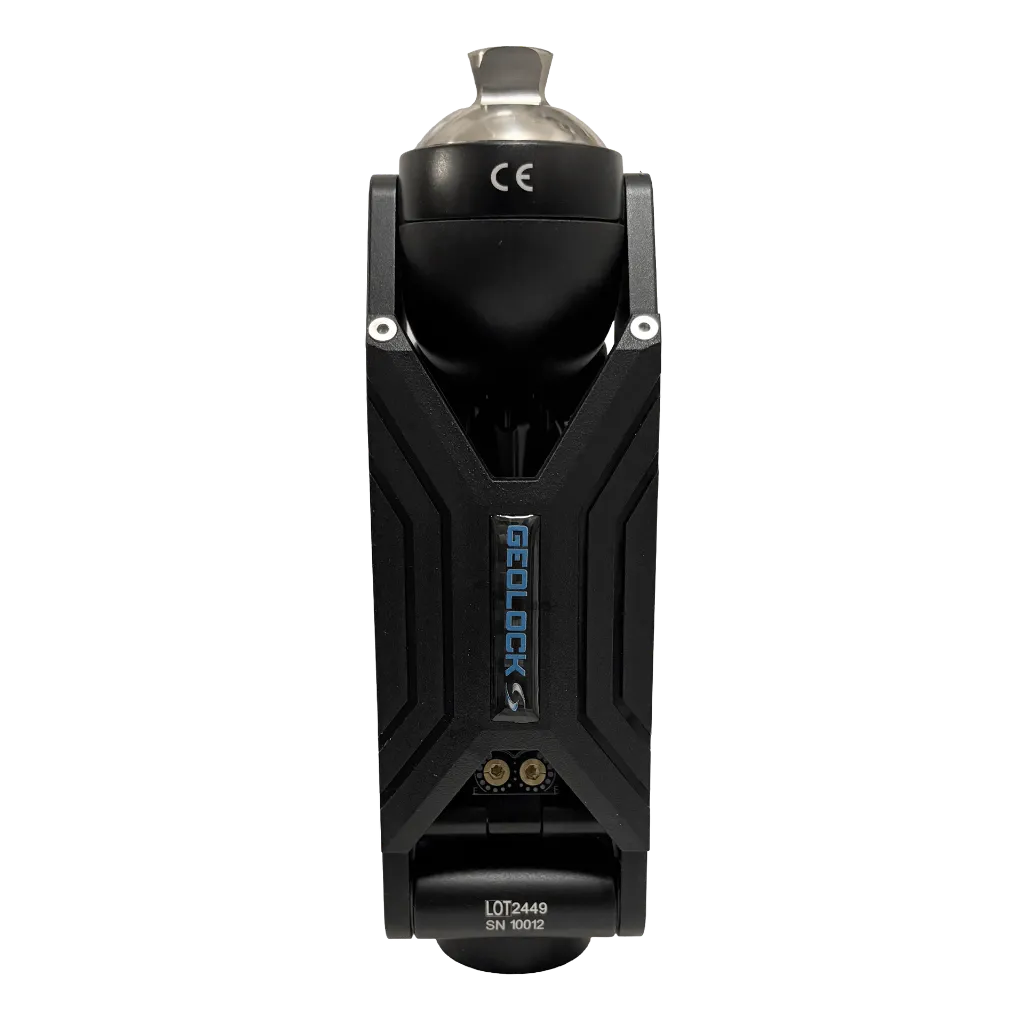

GeoLock Hydraulic Knee

The 1336 GeoLock Hydraulic Knee promotes solid stance control due to the effective mechanical geometric locking 4-Bar axis design, yet has smooth predictable swing phase transitioning.

Geometrical Locking Mechanical Stance Stability Design
Smooth predictable swing phase transitions
Pyramid mount with 30mm distal tube clamp
Easy access Flexion and Extension adjustments
Magnesium Aluminum Alloy Construction

The 1336 knee is a very stable, yet easy walking knee. Obstacles are easily negotiable, and variable speed is easily adjustable. The hydraulic Flexion and Extension adjustments are located on the front of the knee for easy access to fine tune knee function. Compatible with many feet, such as the quick walking Endurance, smooth and dynamic Endurance Contour, or the smooth walking and good on uneven terrain ToeFlex.

Warranty: 3 years

PDAC Approved LCodes: L5814 & L5850

Adapter
- KD
- Pyramid

Add to wishlist

Material: Aluminum

K-Level: K2, K3

L-Codes: L5850, L5814

P/N	1336AP	1336KD
Build Height	155 mm / 6.1 in	155.53 mm / 6.12 in
Knee Center to Tube Clamp	138 mm / 5.43 in	138 mm / 5.43 in
Build Height to Knee Center	17 mm / 0.67 in	17.5 mm / 0.69 in
Part Weight	851 g / 30 oz	825 g / 29.1 oz
Weight Limit	125 kg / 275 lb	125 kg / 275 lb
Tube Clamp Screw Torque	12 Nm	12 Nm
Max Flexion	145"	145"
Material	magnesium aluminum alloy	magnesium aluminum alloy
K Level	2, 3	2, 3

P/N	Description
1211T-B	30mm Pylon Titanium Receiver, Black
1211T	30mm Pylon Titanium Receiver
1211S	30mm Pylon Stainless Steel Receiver
1211A	30mm Pylon Aluminum Receiver, Black
1211A-OP	30mm Pylon Aluminum Assembly One Piece
