| P/N | 1326AP Pyramid Adapter | 1326AL Lotus Adapter |
|---|---|---|
| Weight Limit | 100 kg/220 lb | 100 kg/220 lb |
| Build Height | 87.3 mm | 93.6 mm |
| Knee Center to Mid Dome | 23 mm | 29.3 mm |
| Product Weight | 532 g | 553 g |
| Material | Aluminum | Aluminum |
| Warranty | 2 years | 2 years |
| P/N | Description |
|---|---|
1211T-B | 30 mm Pylon Titanium Receiver, Black |
1211T | 30 mm Pylon Titanium Receiver |
1211S | 30 mm Pylon Stainless Steel Receiver |
1211A | 30 mm Pylon Aluminum Receiver, Black |
1211A-OP | 30 mm Pylon Aluminum Assembly One Piece |
| PA13 | Pyramid Adapter |

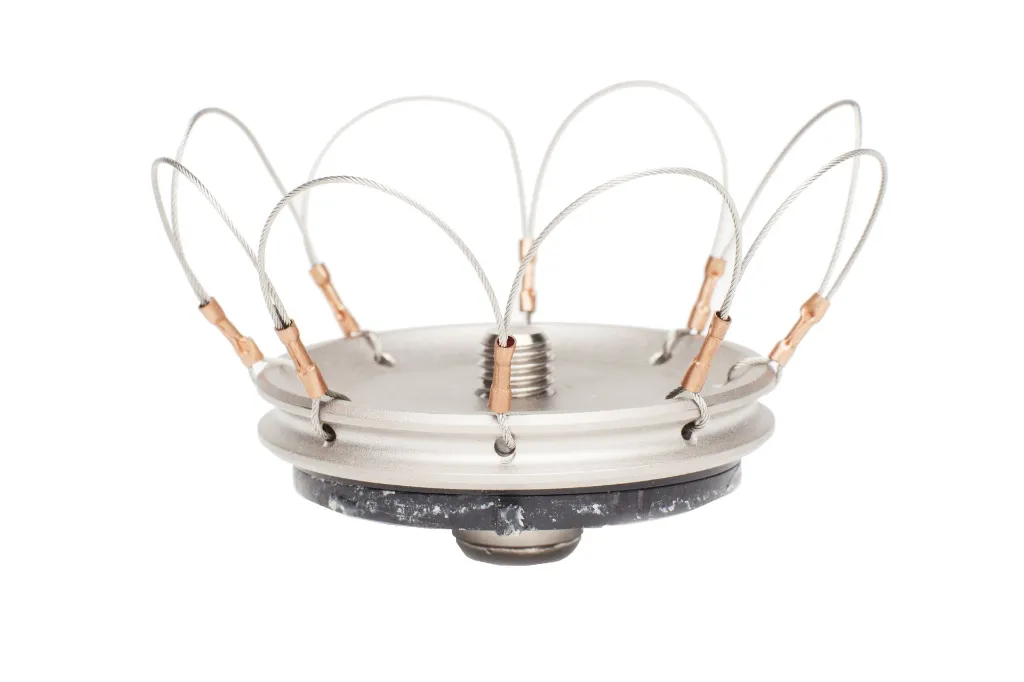

| LA13 | Lotus Adapter |
| Fastener | Torque | Wrench |
|---|---|---|
| M6 Cap Screw (Tube Clamp) | 10 Nm | 5 mm |
| M10 Bolt (Pyramid Center) | 30 Nm | 8 mm |
M5 Set Screw (Pyramid Top) | 3 Nm | 2.5 mm |
