1324

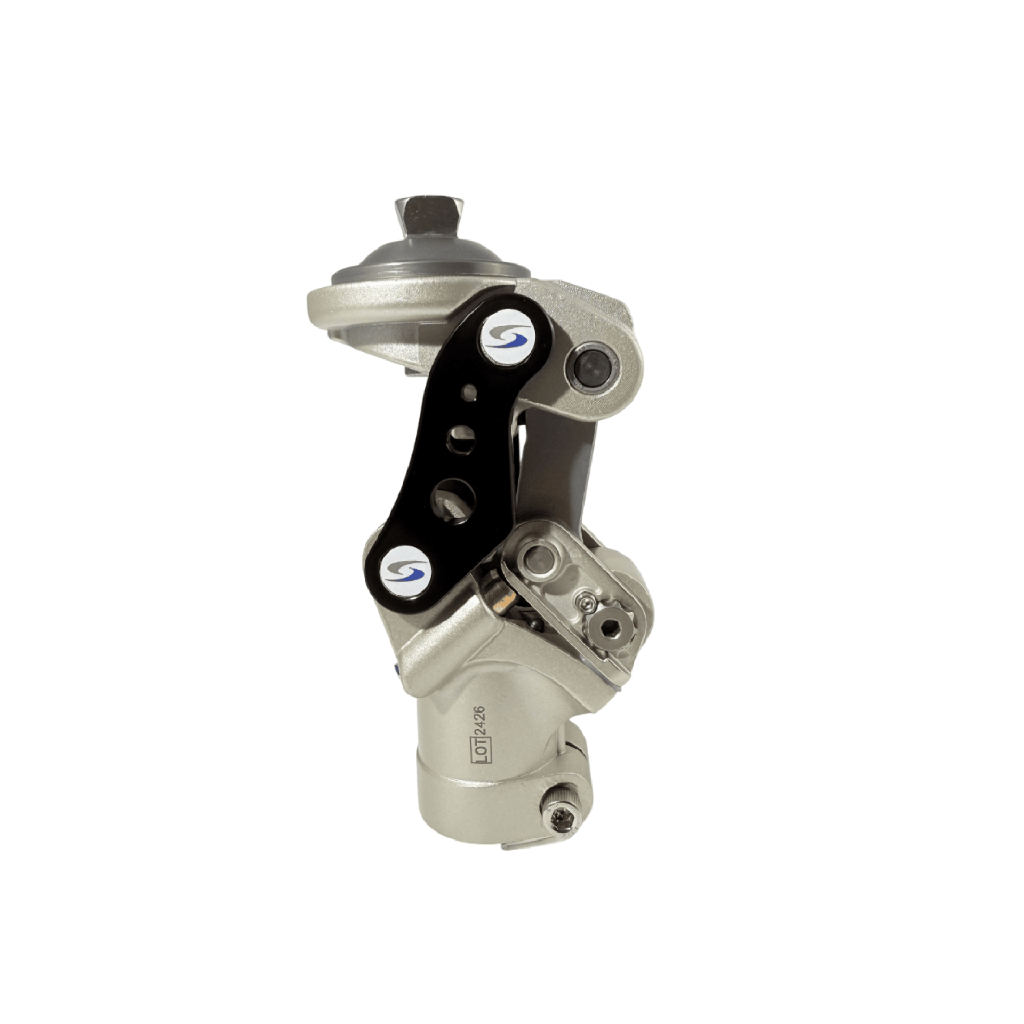

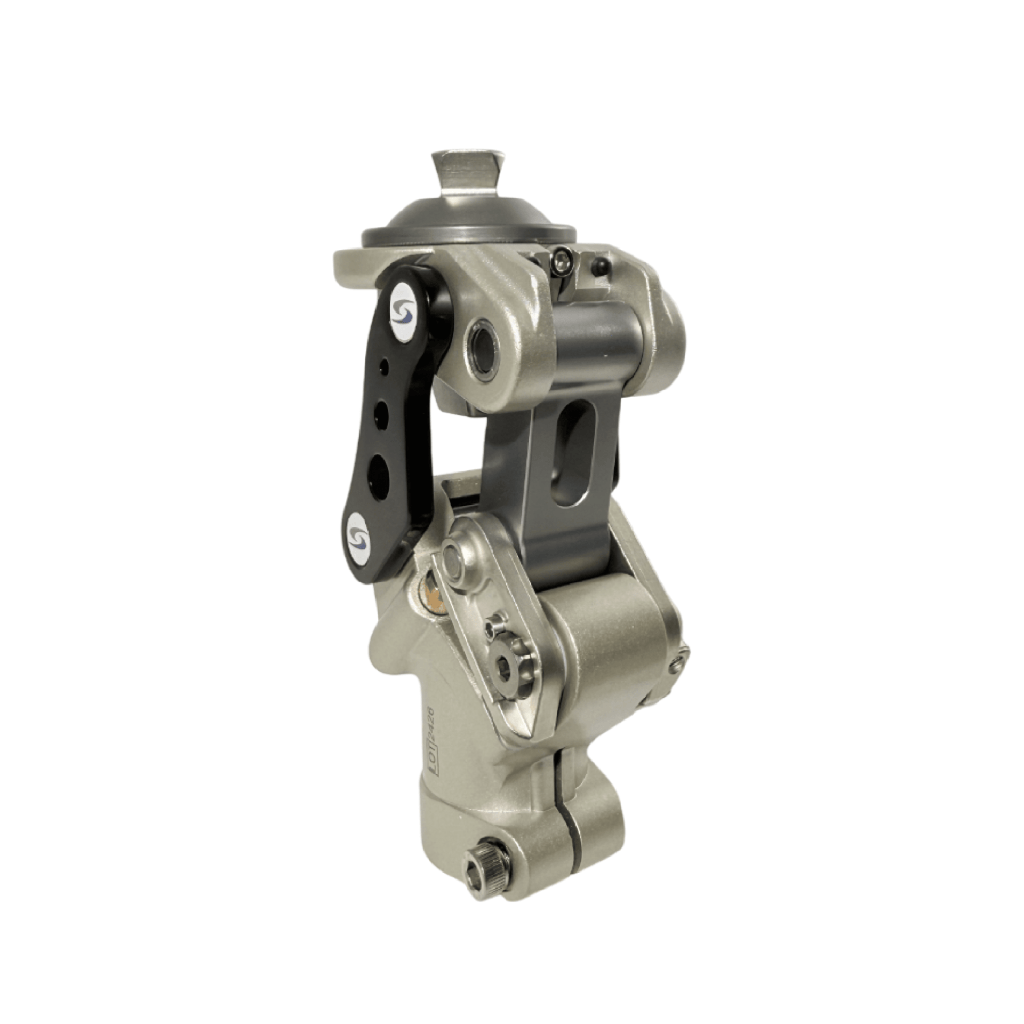

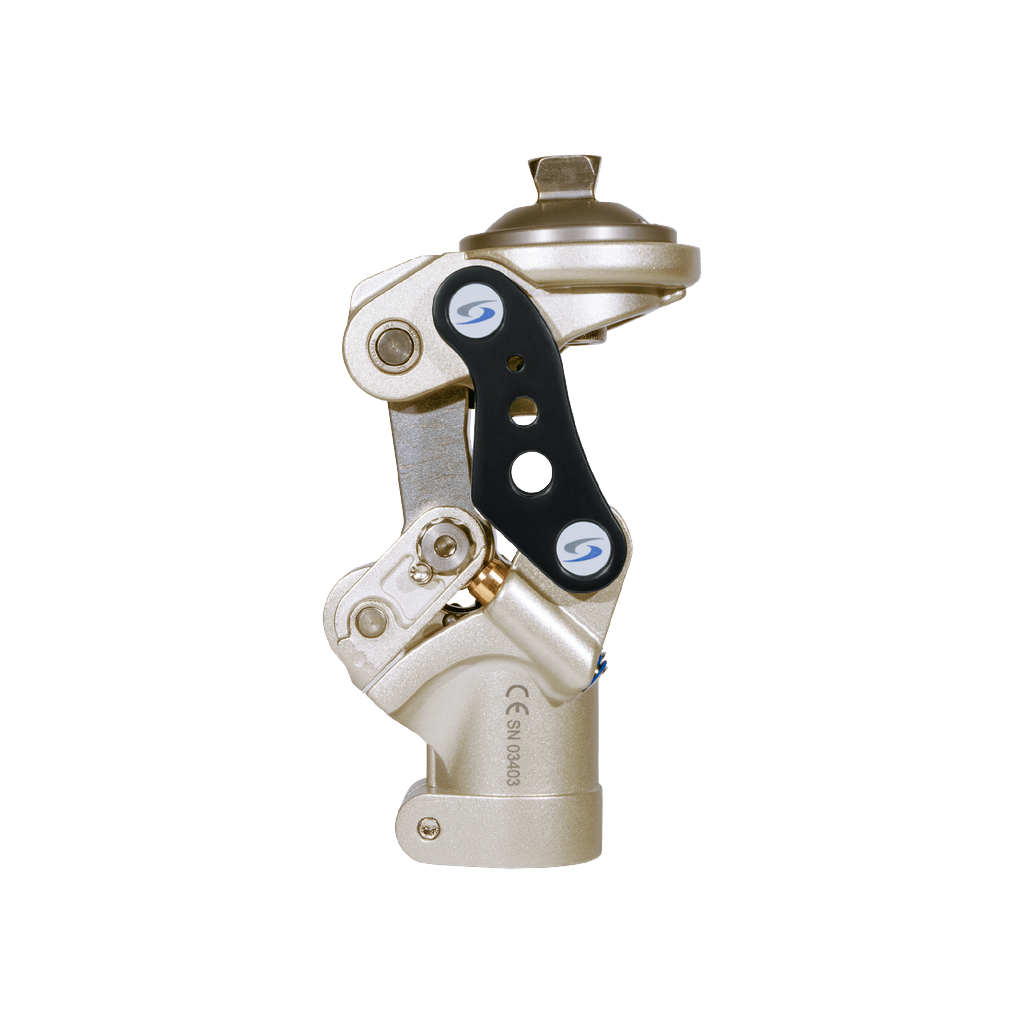

Polycentric Mechanical 5 Bar Knee

5-bar knee with stance flexion for maximum safety during stance
Optional Adapters: Pyramid (AK) and Lotus (KD)
Can be used for either above knee or knee disarticulation
All axes have built-in bearing which allow for ultra smooth walking movement
Extensive alignment adjusting abilities for a smooth and natural gait pattern
Best suited to be used for K2 level
Practitioner adjustable from high to low stability stance flexion
Proximal attachment has 2 mm of A/P, M/L slide and rotation adjustment
Up to 12 degrees of stance flexion
The frame construction is made of superlight aluminum alloy and the 5-bar linkage is made of aircraft alloy

PDAC approved HCPCS code(s): L5611, L5845, L5850

Material: Aluminum

Activity Level: Moderate

K-Level: K2

L-Codes: L5850, L5845, L5611

P/N	Description
1211T-B	30 mm Pylon Titanium Receiver, Black
1211T	30 mm Pylon Titanium Receiver
1211S	30 mm Pylon Stainless Steel Receiver
1211A	30 mm Pylon Aluminum Receiver, Black
1211A-OP	30 mm Pylon Aluminum Assembly One Piece
PA13	Pyramid Adapter

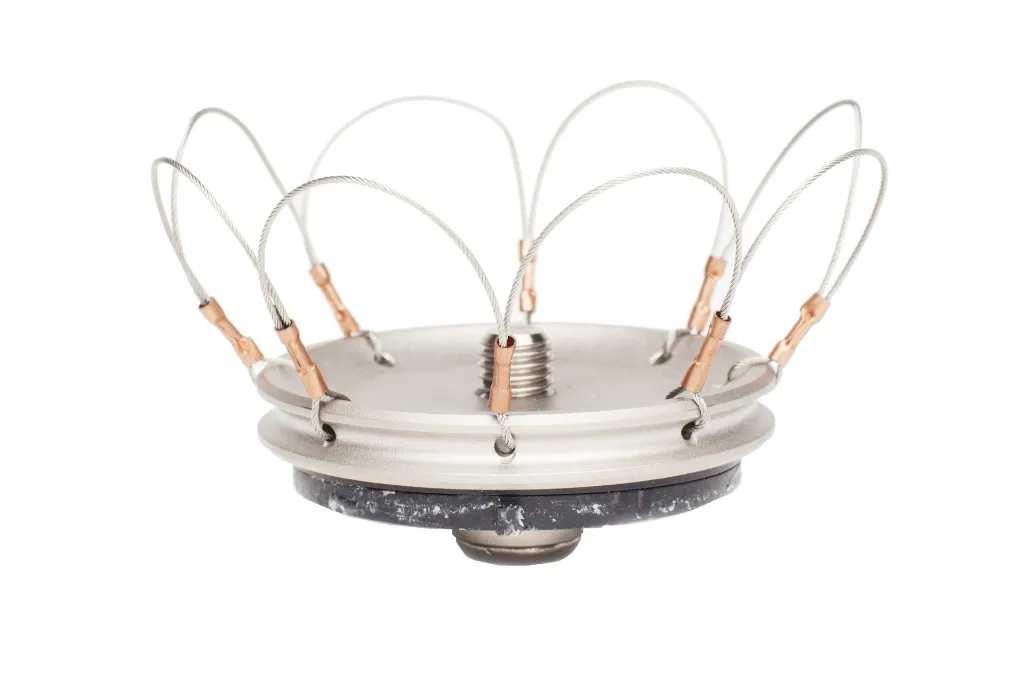

LA13	Lotus Adapter
