1233A

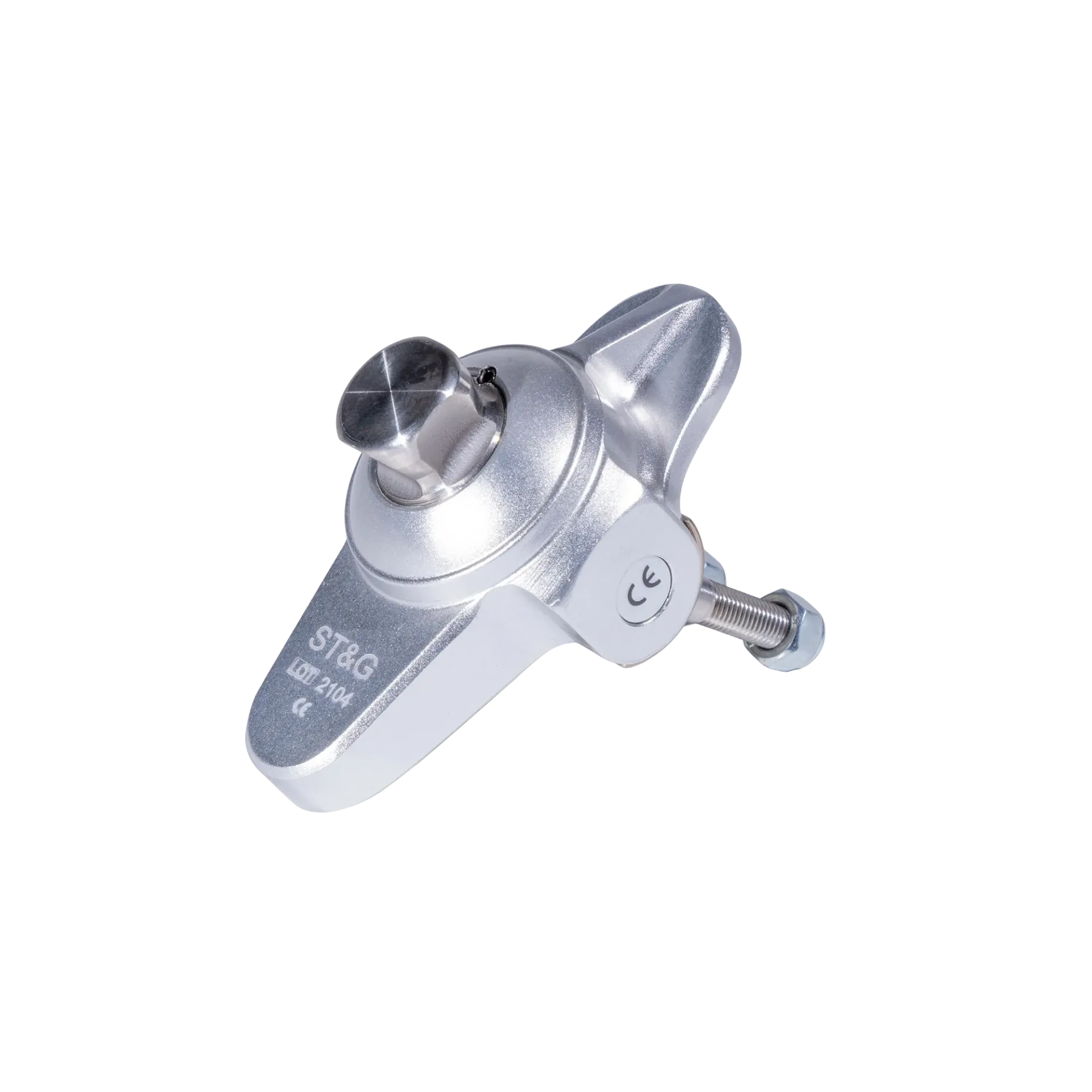

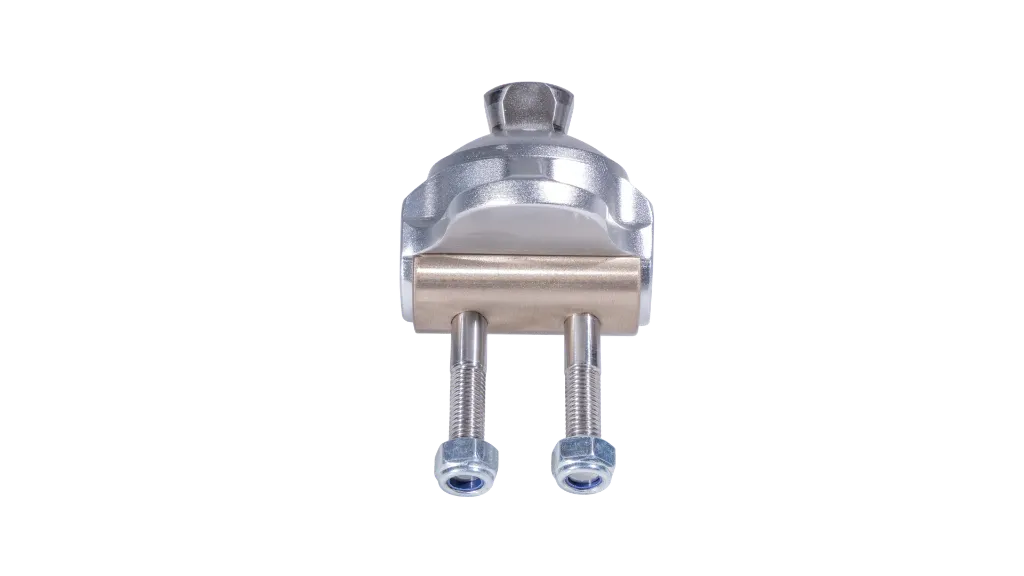

Single Axis Foot Adapter, Al, Large

The articulating ankle joint comes with plantar flexion stop made of elastic member, thus providing elastic plantar flexion stop.
Size: Large (26-30)cm
Large Single Axis Ankle Unit - Aluminum *P/N1233A

Material: Aluminum

Activity Level: Low

K-Level: K1

P/N	Foot Size	Material	Product Weight	Weight Limit
1233A	Large 26-30 cm	Aluminum	207 g	90 kg / 198 lb

P/N	Description
1232-1	Single Component Pack for Single Axis Ankle
1101	Single Axis Foot
1101-1	Connection Cap

Fastener	Torque
Joint Nut	6 Nm

Instructions for Use (IFU)

Specifications
