1224A

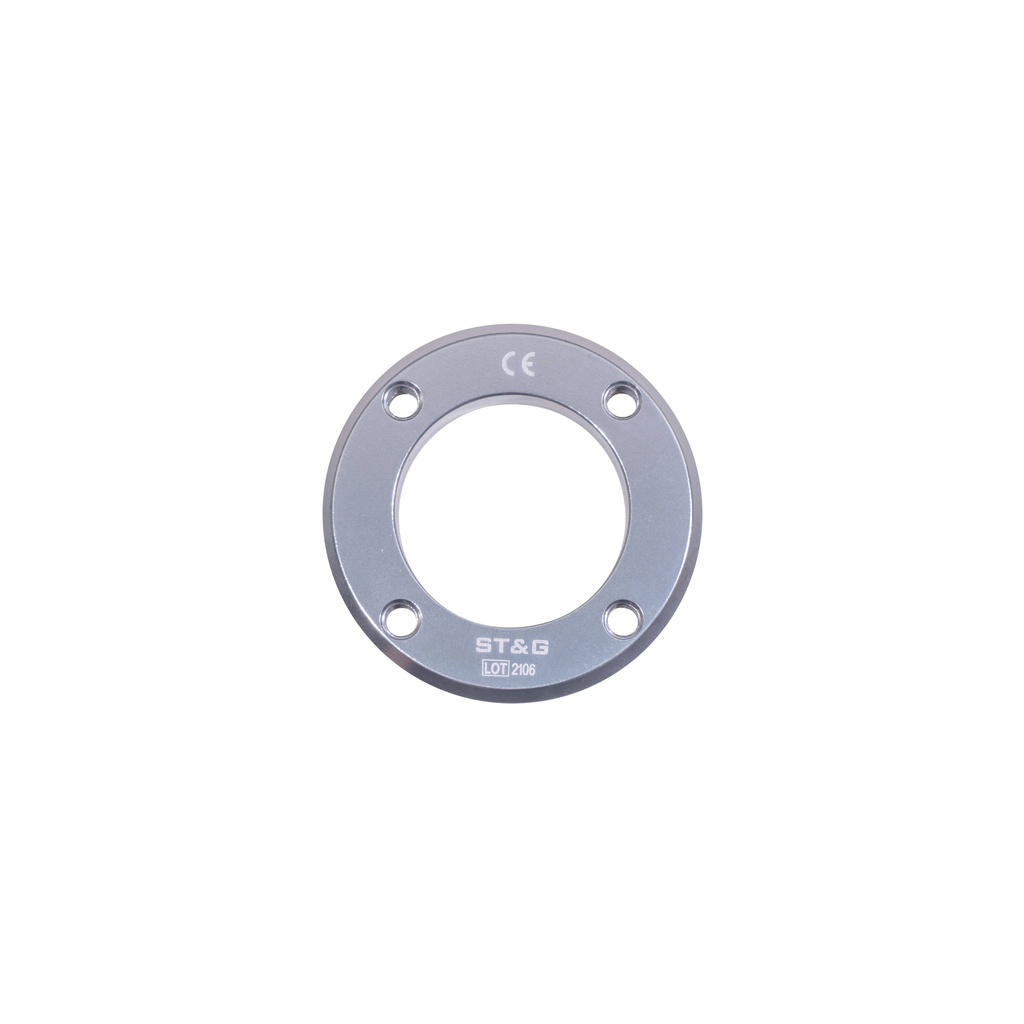

4 Hole Threaded Base Plated with Center Hole, Al

Name: 4 Hole Threaded Base Plated with Center Hole, Al
SKU: 1224A
Price: 13.49 USD
Availability: InStock

The 4-Hole Threaded Plate with Center Hole is used for

socket attachment. It can be used in thermoplastic and

laminated socket application. The 4-hole pattern matches

the standard 4-hole adapter with pyramid or receiver.

Warranty: 2 years

International clients will receive silver metallic aluminum - 250 lb weight limit

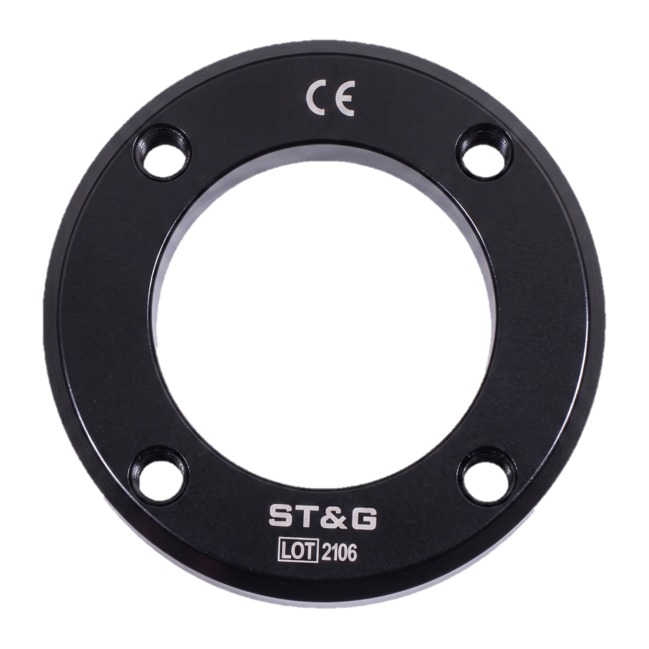

USA clients will receive black aluminum - see specs for weight limit

Material: Aluminum

Activity Level: Moderate

K-Level: K2, K3

P/N	Build Height	Build Height	Product Weight	Weight Limit
1224A (Black)	8 mm	8 mm	39 g	136 kg /300 lbs
1224A (Silver)	8 mm	8 mm	39 g	125 kg/275 lbs

Fastener	Torque	Wrench
M6 Flat / Button Head (Mount)	10 Nm	4 mm wrench

Instructions for Use (IFU)

Specifications
