1218A

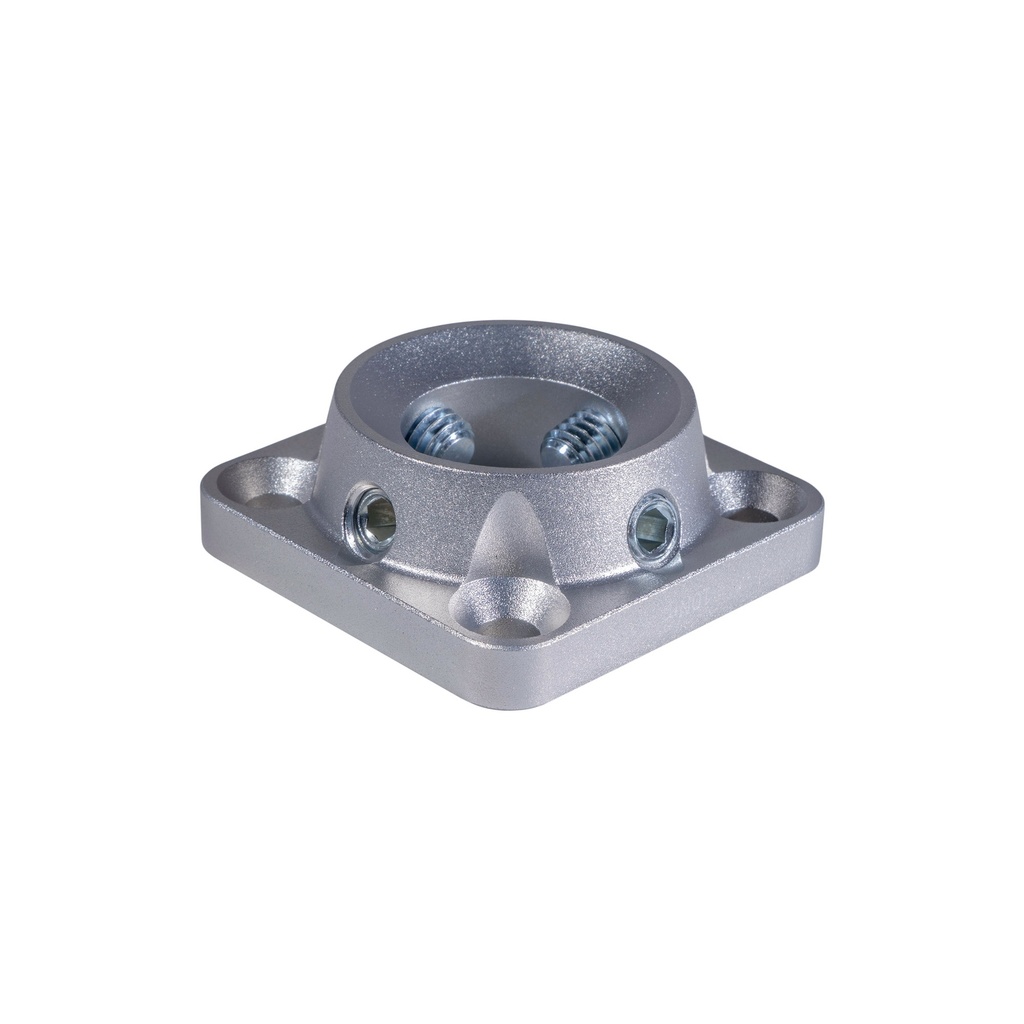

4 Hole Connector, Receiver, Al

$ 39.28 $ 39.28

The 4-Hole Connector, Receiver is used to connect to any 4-hole thread system and pyramid connection. Used 4 flat head screws to connect to 4-hole connector. 4 set screws are used for anchoring the pyramid system as well as for making angular adjustment for alignment adjustment screws for connection. Apply loctite to all screws once the alignment and connection is finalized.

Warranty: 2 years

  • Material
Add to cart
Contact Us: 714-524-0663 Distributor Contacts
Contact Us
Material: Aluminum

P/NMaterialProduct WeightWeight Limit
1218AAluminum84 g158 kg / 350 lb

FastenerTorqueWrench
1218T/S M8 Set Screw (Alignment Screw)10-15 Nm4 mm wrench
M8 Set Screw (Alignment Screw)7-10 Nm4 mm wrench
1218T/S M6 Flat Head (Mount)7-10 Nm4 mm wrench
