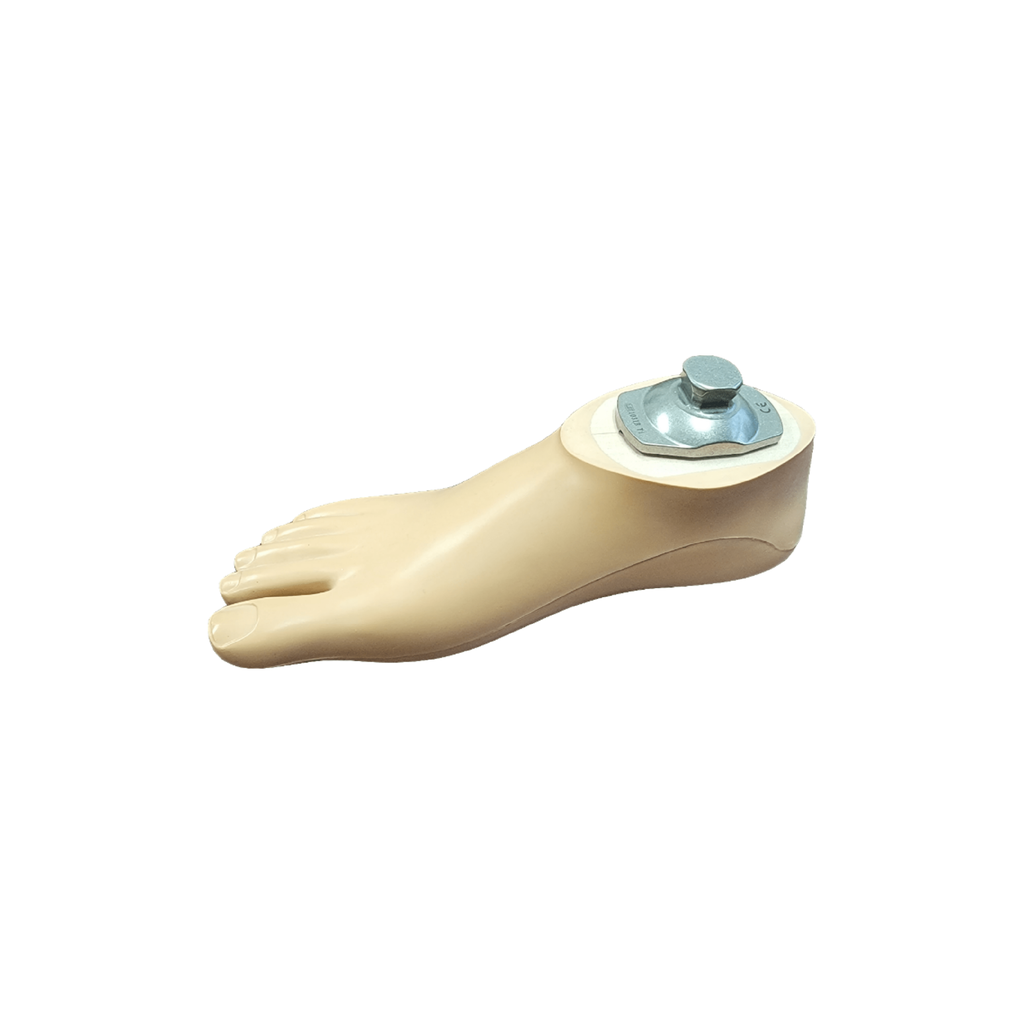

The Heavy Duty SACH 500 FOOT is designed for users who cannot use a standard weight rating SACH foot.
500lb system features a larger than standard pyramid and requires the larger Tube Clamp.
This foot is not designed for high impact sports or activities, such as construction, or exposure to, or submersion in water.
Rated for use with ST&G 500Lb. 34mm Pylon Component System
• Integrated ST&G 500Lb Rated Titanium Pyramid SACH Adapter for 34mm Pylon Component System
• 10mm (3/8”) Heel Rise
• 14mm (9/16″) Integrated Foot Bolt
• Extra Firm Heel Cushion and Split Toe Standard
• Rated up to 227kg / 500lb
• Split Toe Design
• Sizes 26 – 30cm
• Build Height of Foot Size 27: 86mm
• Product Weight of Foot Size 27: 812g
500 pound SACH foot must be paired with 510T 500lbs 34mm Pylon Component System BK Kit.
Failure to do so could void warranty due to possible incompatibility of componentry.
Warranty: 1 year
Suggested L-Code: L5970
Warranty: 2 YearHD-500P
